Friendly All-In-One Solar Street Light

TL-X series

Integrated integrated patented design, aluminum alloy frame, overall light and thin, strong wind resistance. Not only has excellent shape design, but also has anti-corrosion, waterproof grade Ip66. Intelligent Internet of Things control system, equipped with computer software CMS, wirelessly monitor the operation status of each solar street lamp.

More economical and flexible configuration to meet different road project



Model TL-X6 TL-X8 TL-X10 TL-X12 TL-X12
Mono Solar Panel Power 60W 80W 100W 120W 150W
Efficiency 20%
Life 25years
LED light Maxi Power 60W 80W 100W 120W 150W
Color Temp 6000K
LED Chip Lumileds
LED Quantity 180pcs 180pcs 270pcs 270pcs 360pcs

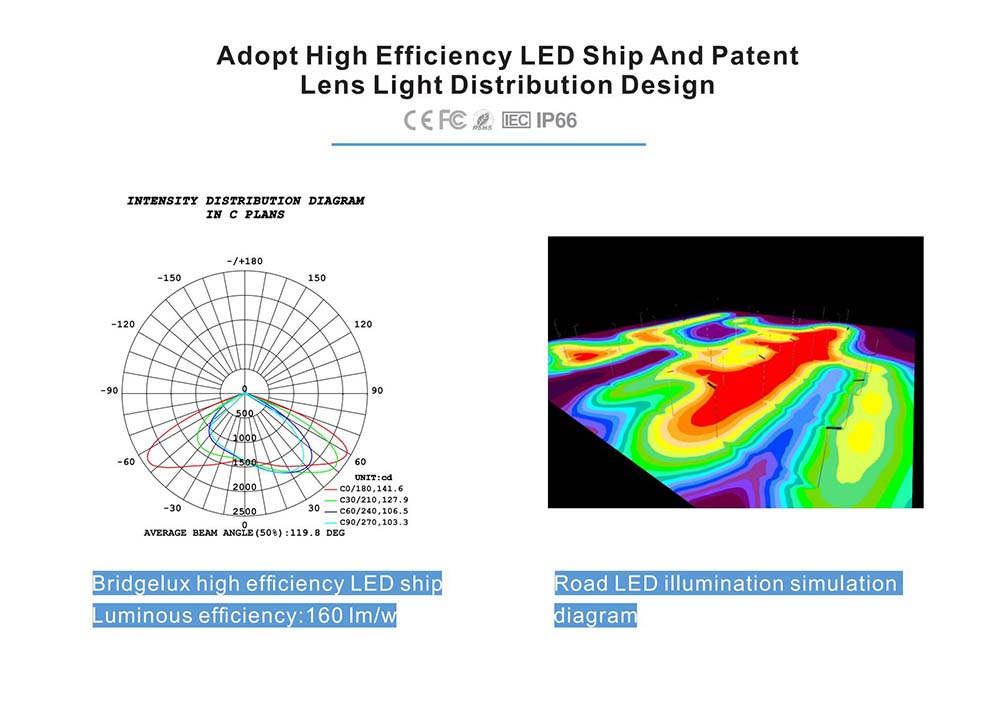

Beam Angle 141°*85°
Luminums flux 180lm/w
Lumen 5400lm 7200lm 10800lm 14400lm 18000lm
Life ≥50000hrs

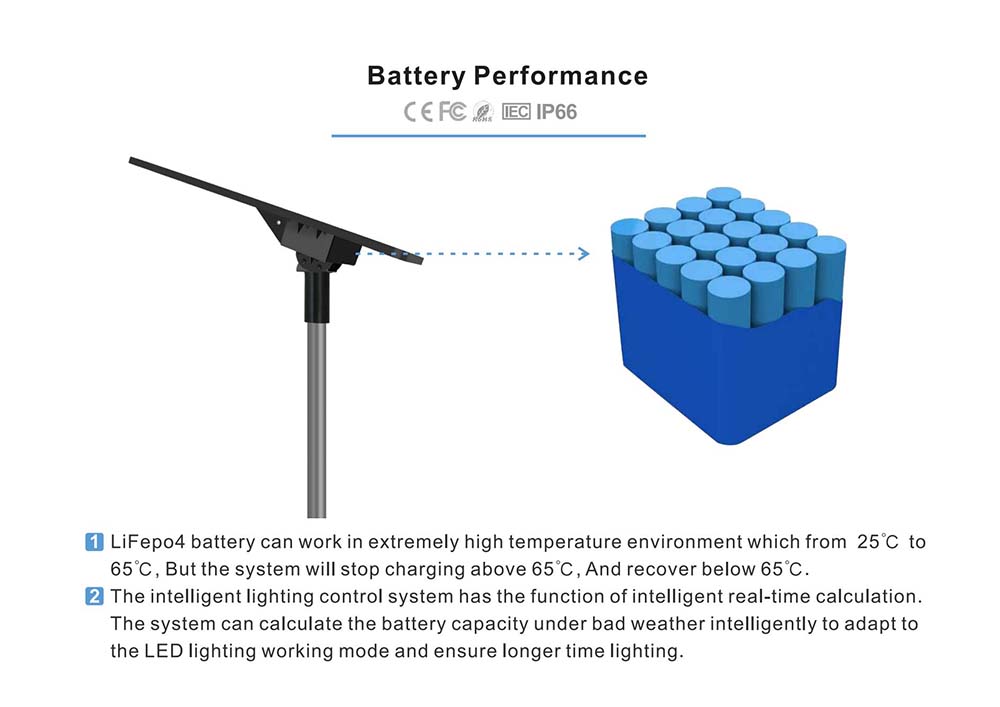

 LiFePO4 Battery Capacity 460.8WH 537.5WH 768WH 921.6WH 1075.2WH
Life Cycle 3000cycles
Certification CE, EMC, Rohs, IEC, IP65
Intelligent  Controller MPPT charge controller with 12m mircrowave sensor

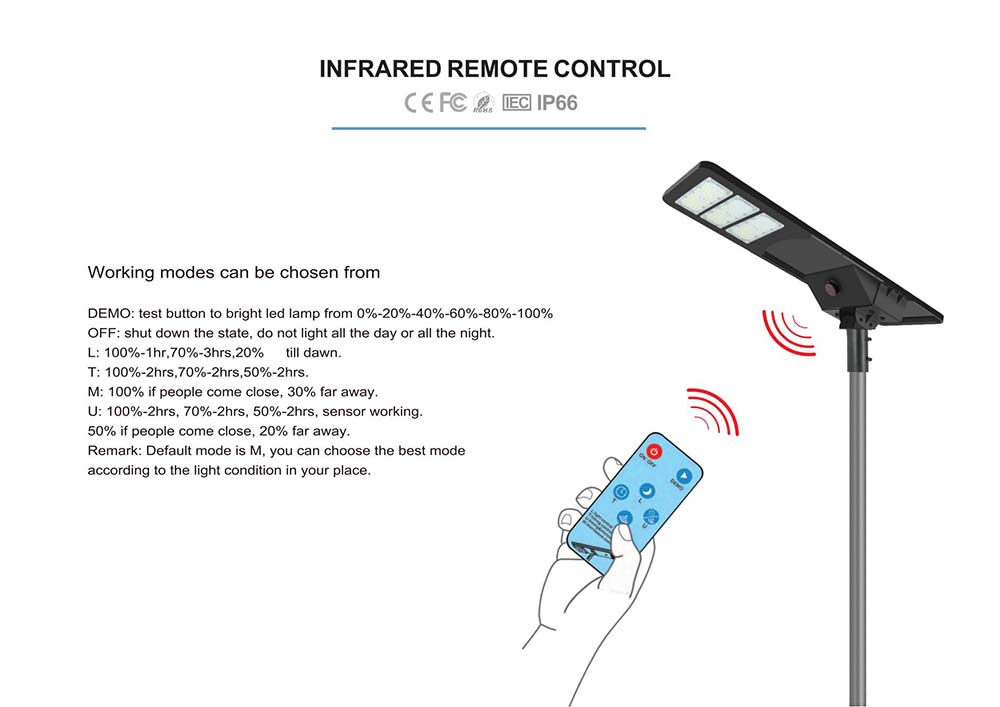

Working Mode Timing+Dimming+Sensor
Working Time 12hours/day, light+time+microwave sensor control
Charging Temp -20-65
Discharging Temp -20-65
Storage Temp 0-45
Height of  Pole  6-7m 7~8m  8-9m 9~10m 9~10m
Distance of  Pole <20m <25m <25m <30m <30m
Size 1160*400*175MM 1480*400*175MM 1530*540*175MM 1680*540*175MM 1780*540*175MM
Weight 12KG 14KG 17KG 18.3KG 19.8KG
Pole Diameter 70mm 70mm 70mm 70mm 70mm
