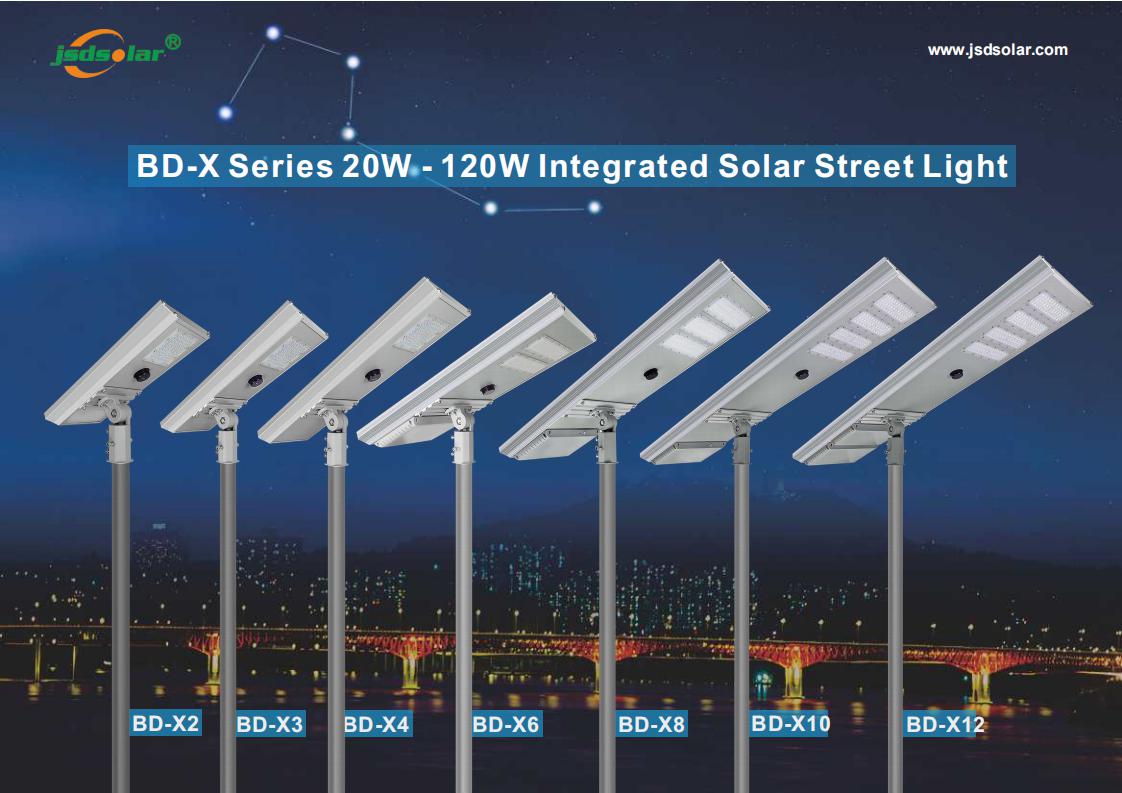

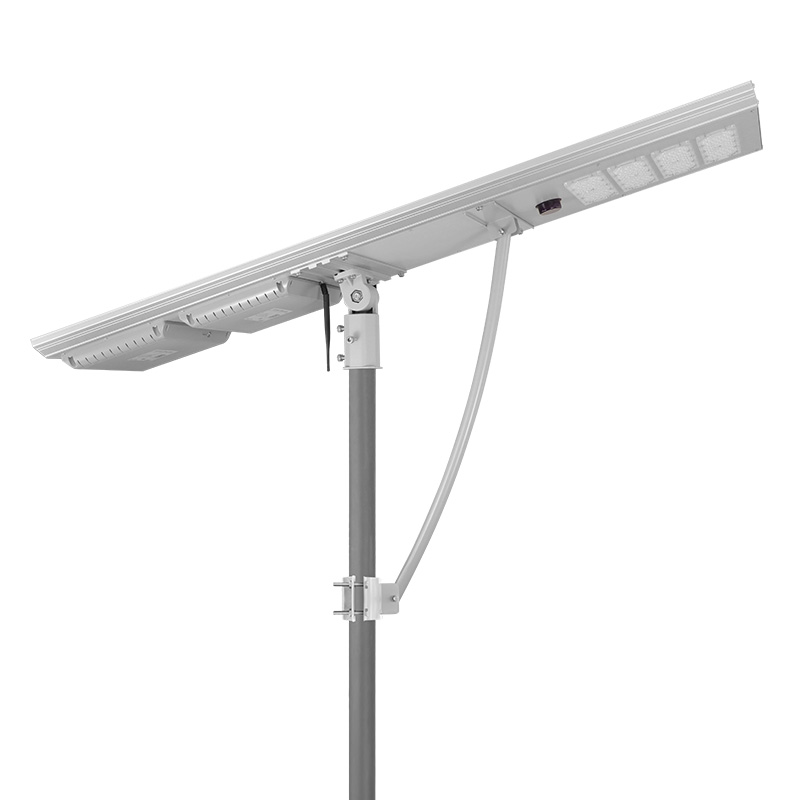

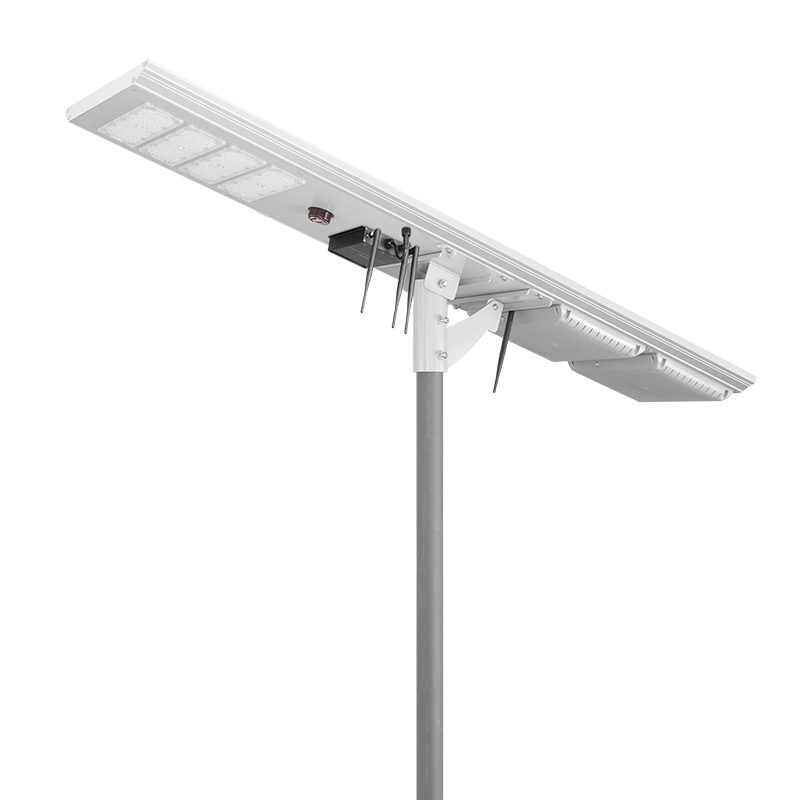

All In One 20W to 120W Solar Street Light

BD-X series

BD-X solar street light is with patent design to make installation and maintaining more economical, and flexible configuration to assist client to meet different projects' requirements.

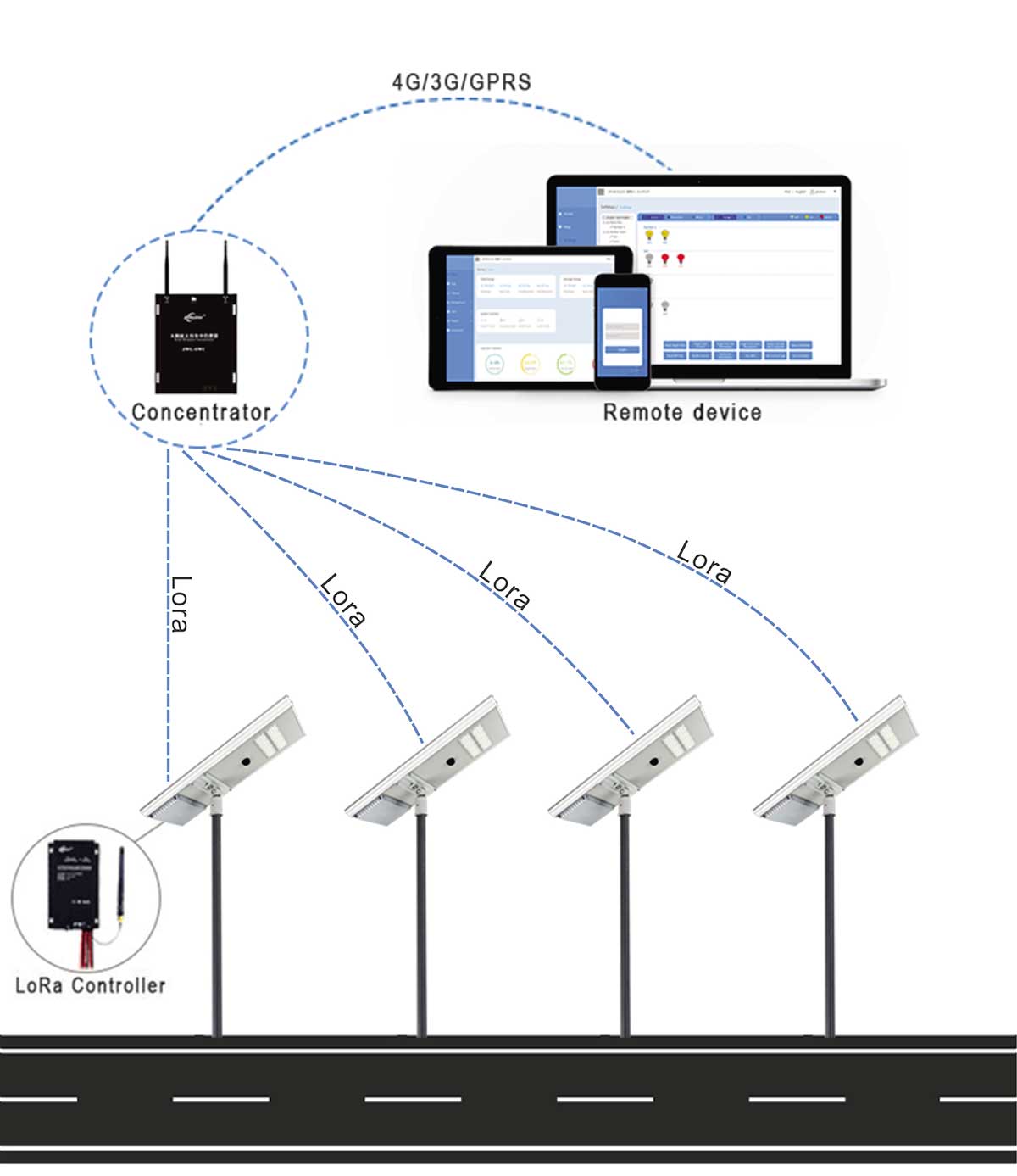

BD-X series can equip JINSDON APP Bluetooth control or JINSDON IOT LoRa intelligent monitor&control system.

Luminums flux

160lm/w

Life Cycle

3000cycles

FEATURES

SPECIFICATIONS

Model BD-X2 BD-X3 BD-X4 BD-X6 BD-X8 BD-X10 BD-X12
Mono Solar Panel Power 24W 30W 40W 60W 80W 100W 120W
Efficiency >19%
Life 25years
LED light Power 20w 30w 40w 60w 80w 100w 120w
Color Temp 3000-6500k
LED Chip Bridgelux/Philips
Luminums flux 160lm/w
Lumen 2000-3200lm 3000-4800lm 4000-6400lm 6000-9600lm 8000-12800lm 10000-16000 16000-19200lm
Life ≥50000hrs
CATL LiFePO4 Battery Capacity 160Wh 192Wh 256Wh 384Wh 512Wh 640Wh 768Wh
Life Cycle 3000cycles
Certification CE, EMC, LVD, FCC, Rohs, IEC, IP66
Intelligent  Controller 30A with 12m mircrowave sensor
Working Time 12hours/day, light+time+microwave sensor control
Charging Temp -20-65
Discharging Temp -20-65
Storage Temp 0-45
Height of  Pole 2-4m 3-5m 4-6m 5-7m 6-8m 7-9m 8-10m
Distance of  Pole <15m <15m <20m <25m <30m <30m <30m

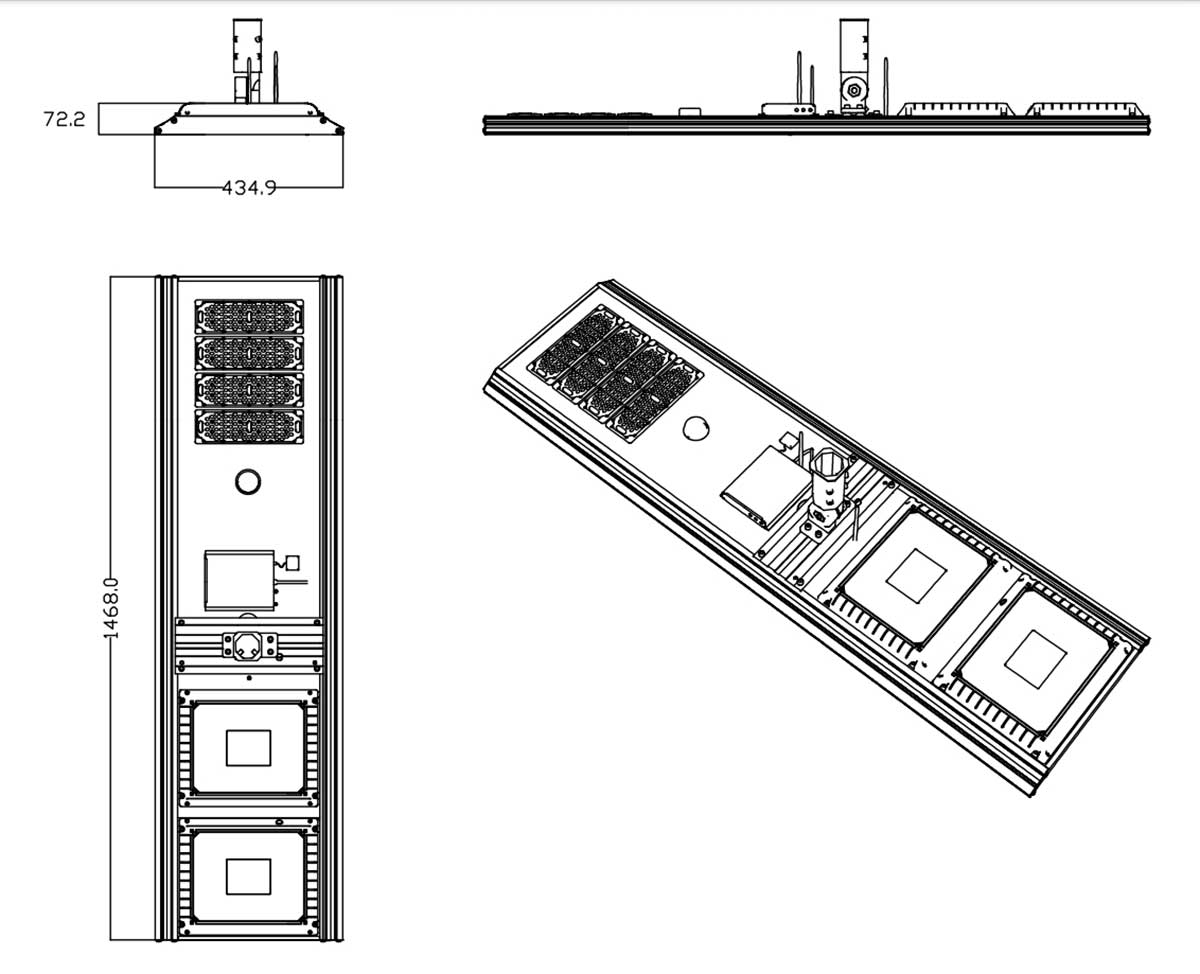

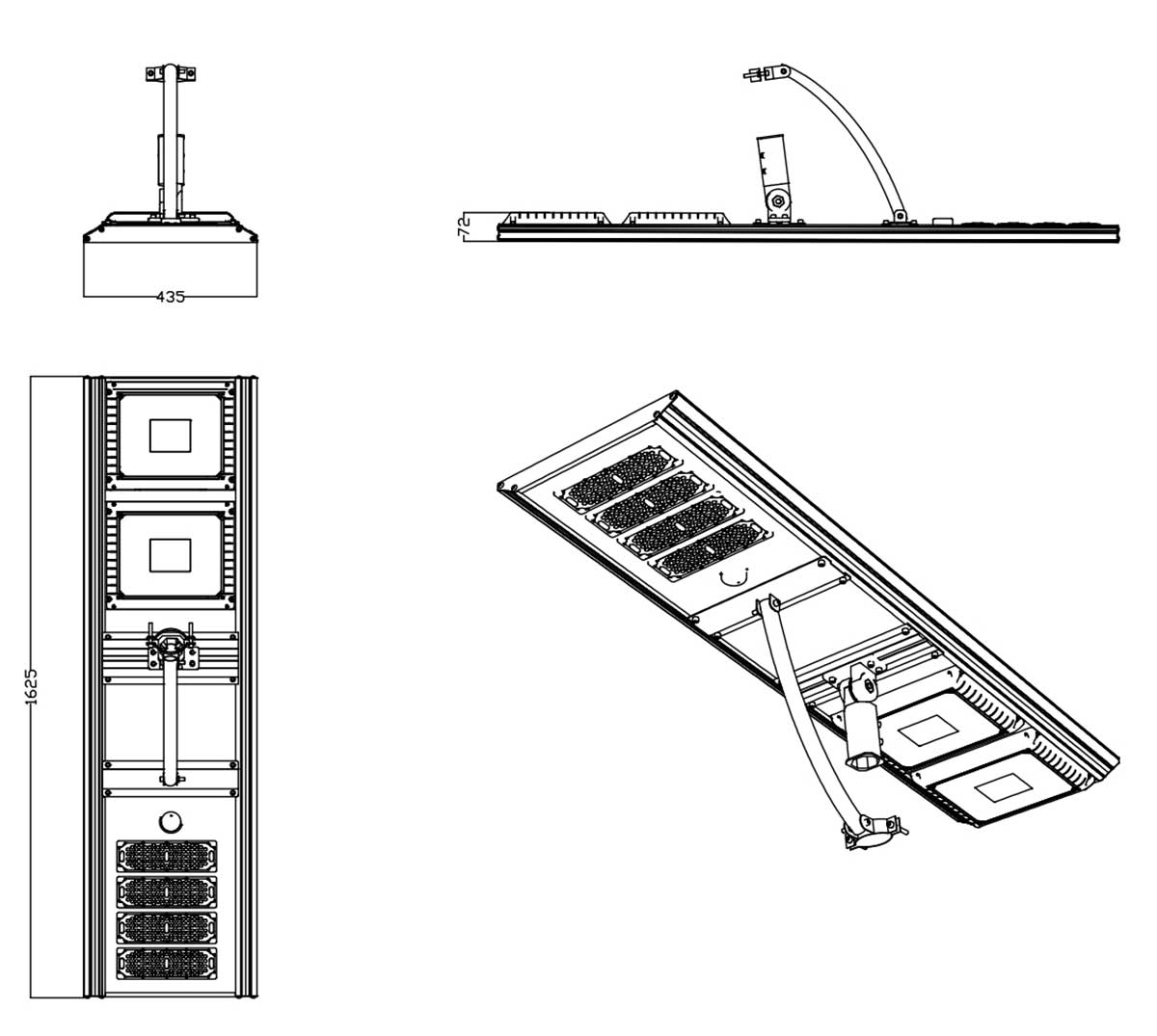

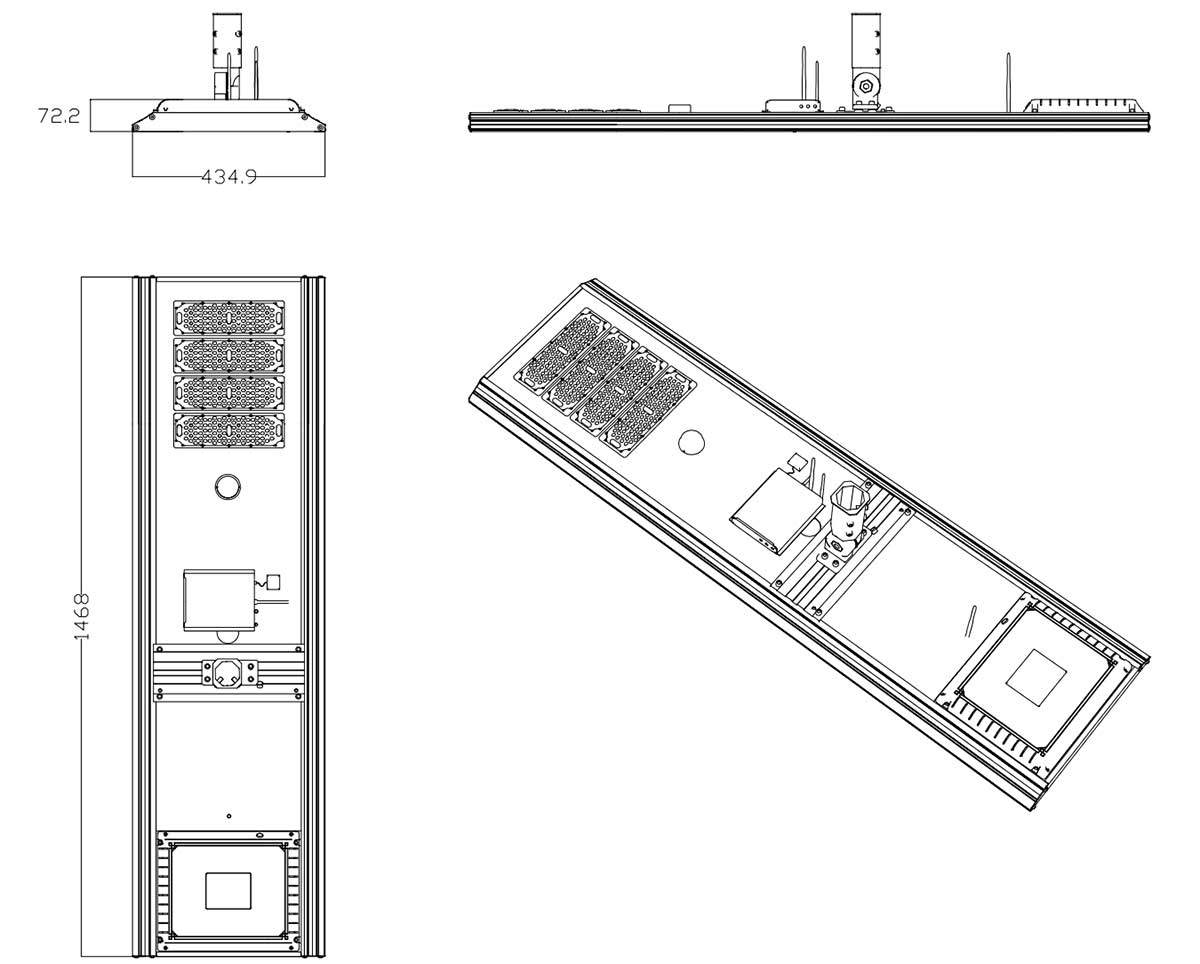

Size 550*300*50mm 700*300*50mm 890*300*50mm 890*432*73mm 1200*432*73mm 1550*432*73mm 1550*432*73mm
Weight 7kg 11.5kg 13kg 14.5kg 18kg 22.5kg 22.5kg
Pole Diameter 50-60mm 50-60mm 50-60mm 50-60mm 50-60mm 50-60mm/ 70~80mm 50-60mm/ 70~80mm

DESCRIPTION

DETAILS

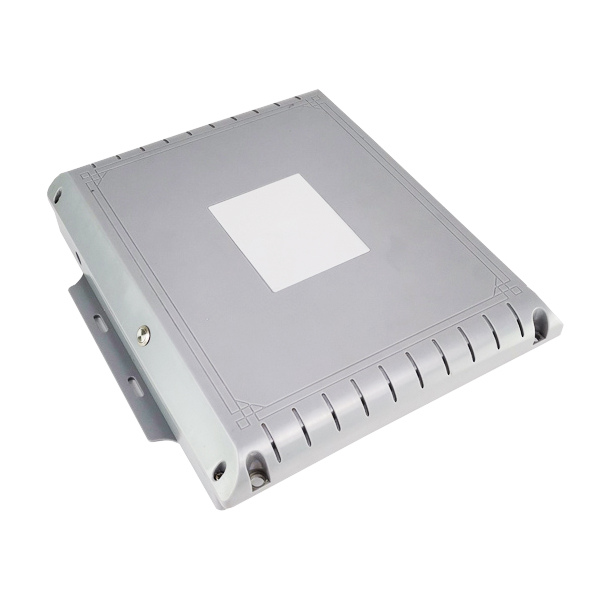

  • Battery.jpg

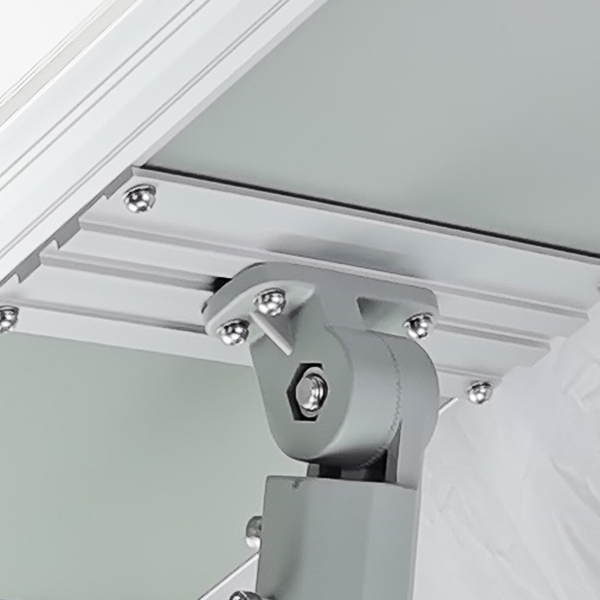

  • Bracket.jpg

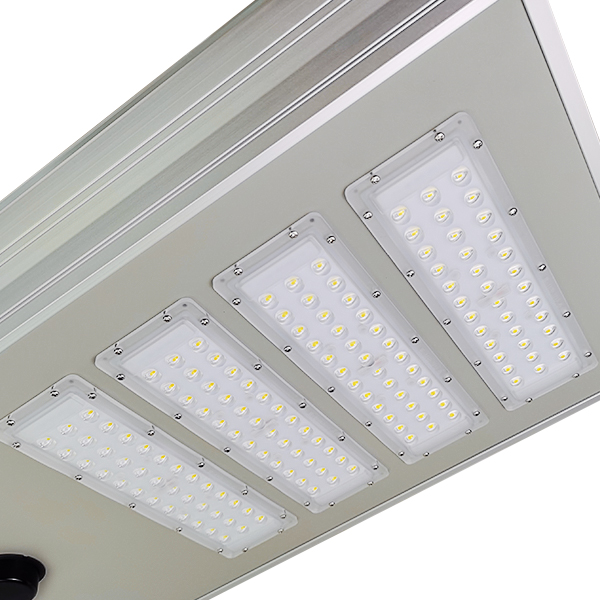

  • LED light.jpg

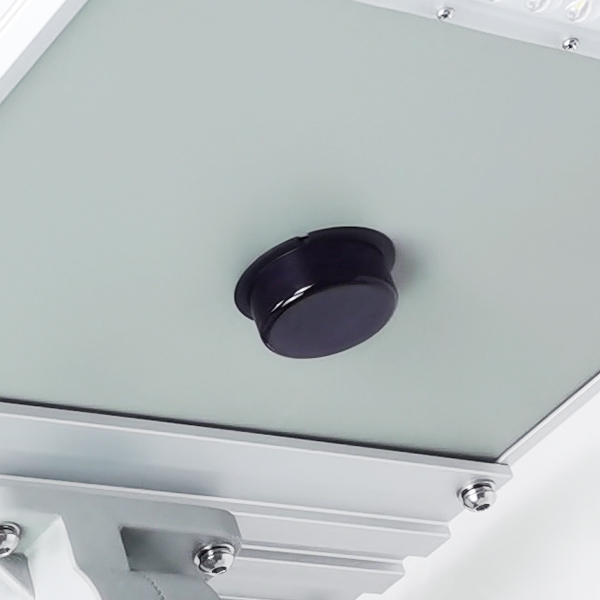

  • Motion sensor.jpg
