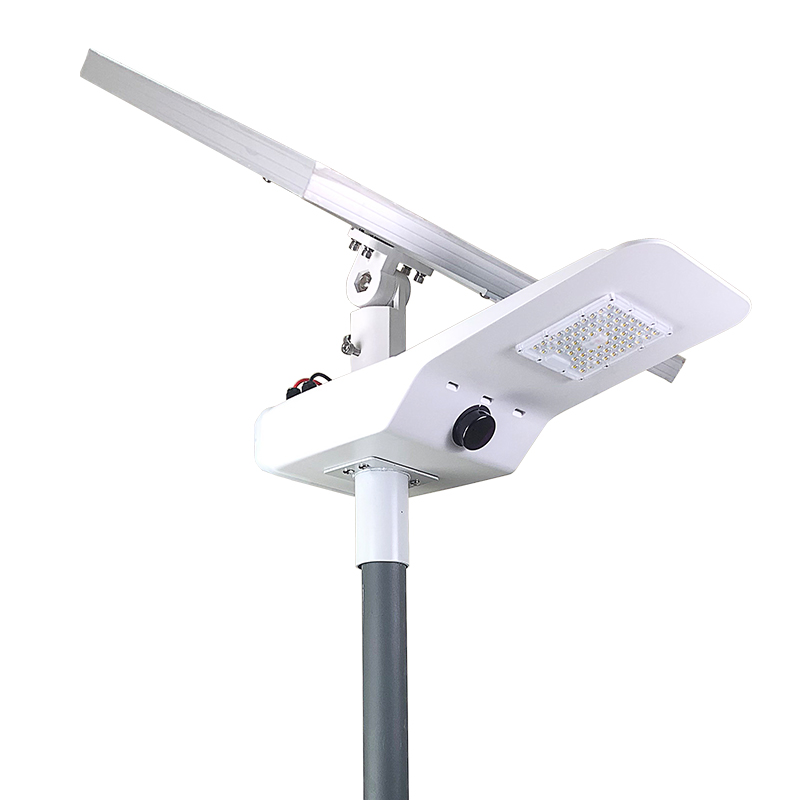

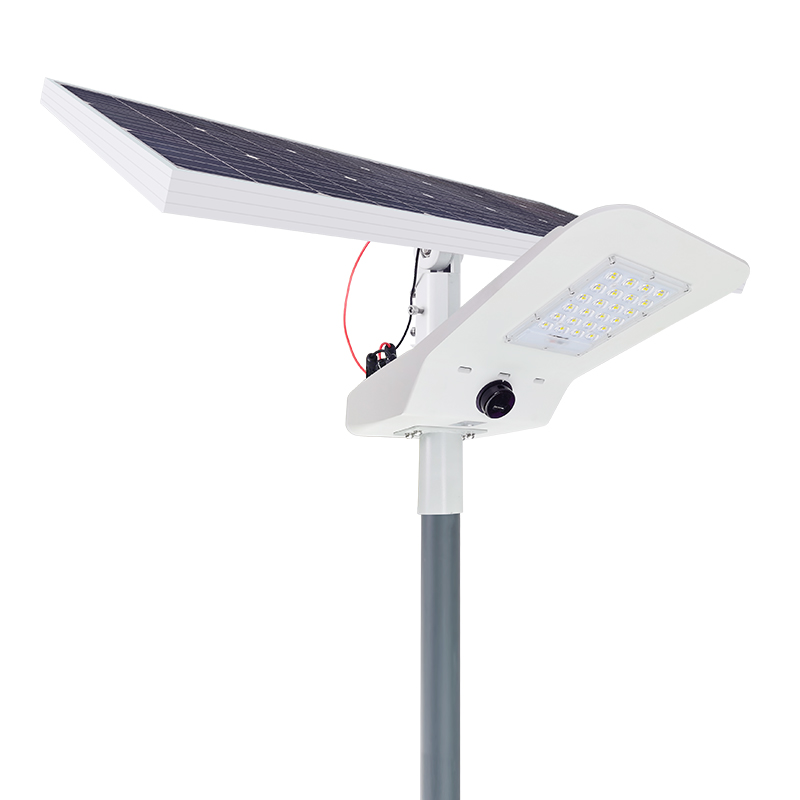

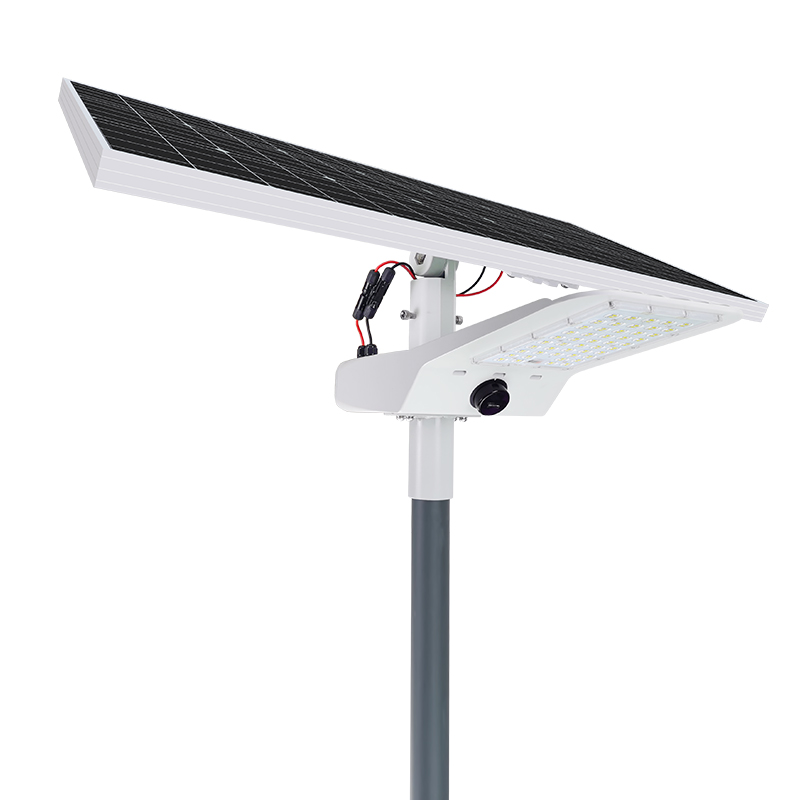

APP Bluetooth Control All In Two solar street light

Vega-A series

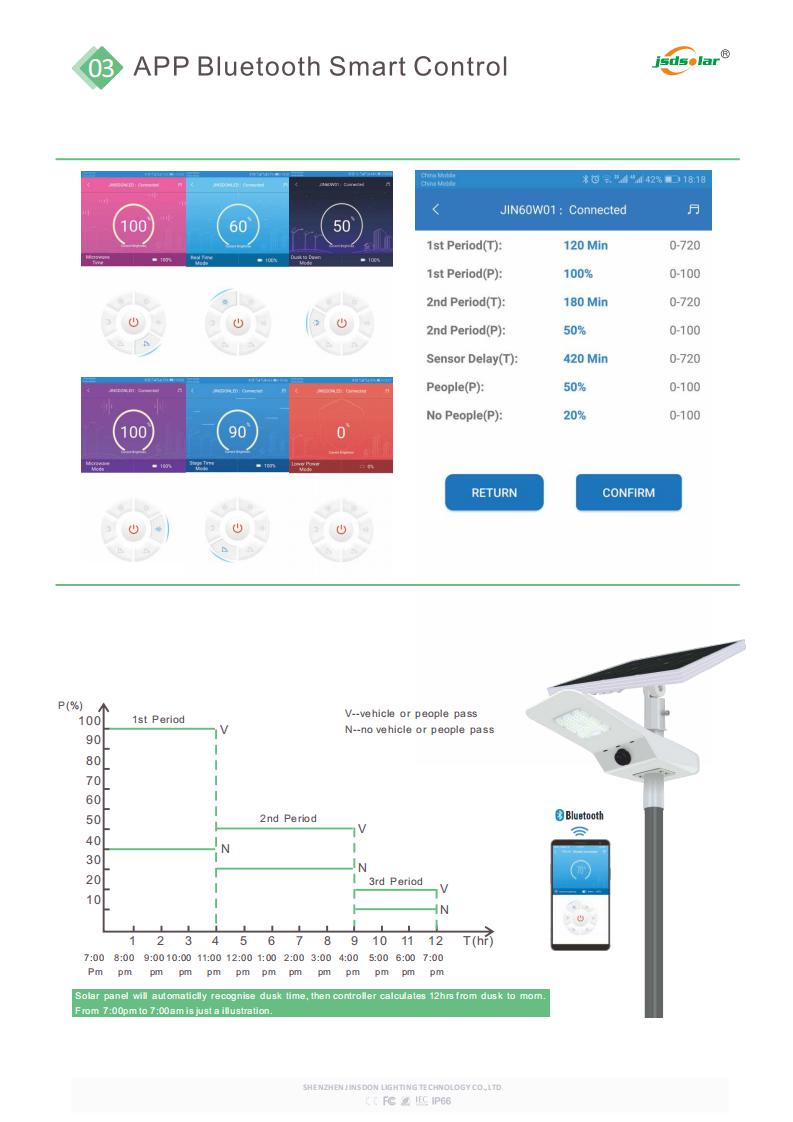

Vega-A solar street light is to ensure solar panel absorb sunlight efficient according to adjust PV orientation, product presentation part to make the showing how the solar lighting working different like LED light on-off / timing / dimming / mode/ stage in front of customers or government by mobile APP control.

Luminums flux

160lm/w

Life Cycle

3000cycles

FEATURES

SPECIFICATIONS

Model Vega-A50 Vega-A60 Vega-A80 Vega-A100 Vega-A120
Mono Solar Panel Power 50W 60W 80W 100W 120W
Efficiency >19%
Life 25years
LED light Power 40W 60W 80W 100W 120W
Color Temp 3000-6500k
LED Chip Bridgelux/Philips
Luminums flux 160lm/w
Lumen 6400lm 9600lm  12800lm 16000lm 18000lm
Life ≥50000hrs
CATL LiFePO4 Battery Capacity 192Wh 245Wh 384Wh 564Wh 640Wh
Life Cycle 3000cycles
Certification CE, EMC, LVD, IEC, Rohs, IP66
Intelligent  Controller MPPT solar charge controller with 12m mircrowave sensor
Working Time 12hours/day, light+time+microwave sensor control
Charging Temp -20-65
Discharging Temp -20-65
Storage Temp 0-45
Height of  Pole 4-5m 5-6m 6-7m 7-9m 8-10m
Distance of  Pole <15m <15m <20m <25m <30m
Size 600*250*125mm 600*250*125mm 600*250*125mm 600*250*125mm 600*250*125mm
Weight 10.5kg 11.5kg 12.5kg 14.5kg 16kg
Pole Diameter 50-60mm 50-60mm 50-60mm 50-60mm 50-60mm

DESCRIPTION

DETAILS

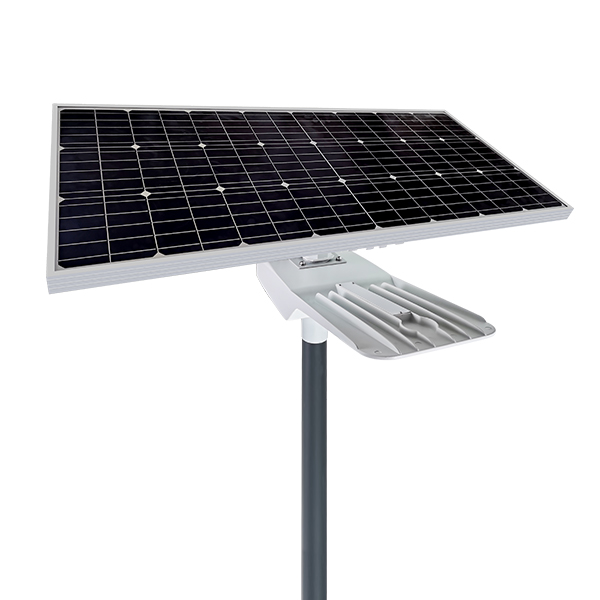

  • Fin back

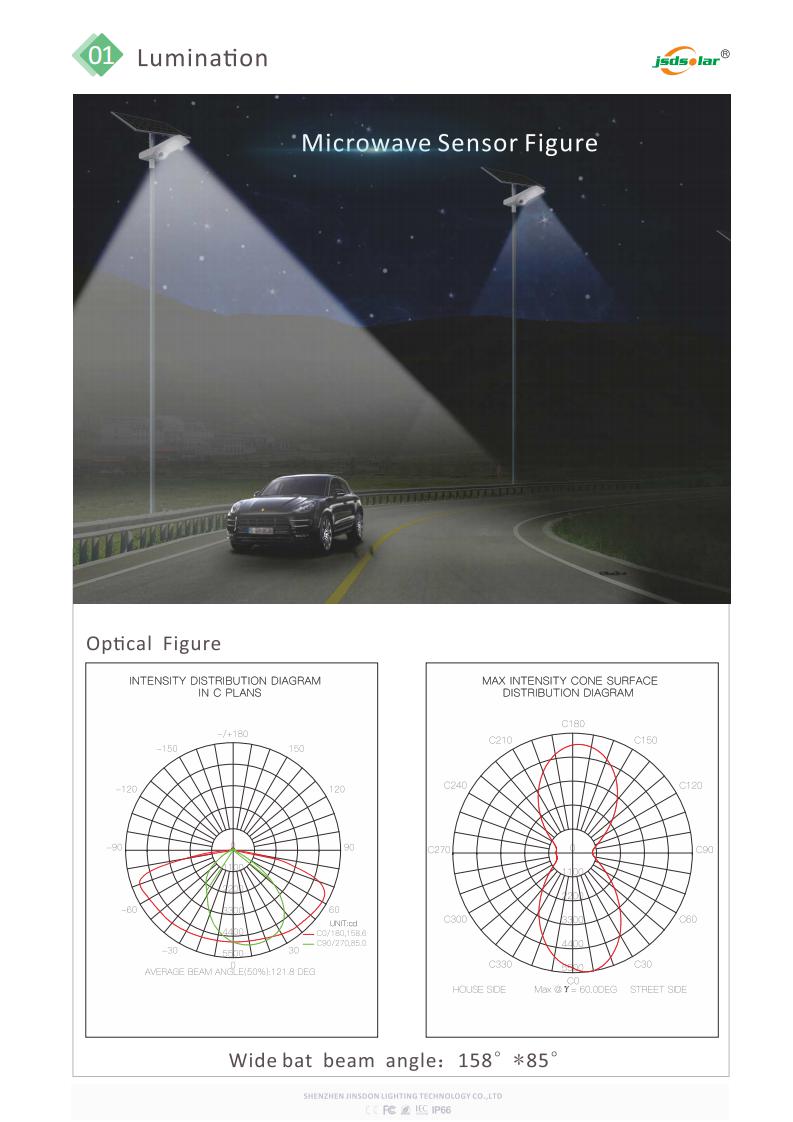

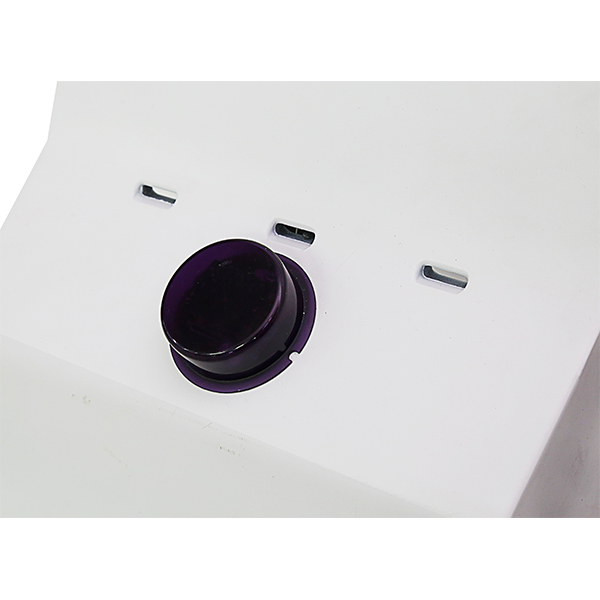

  • Motion sensor

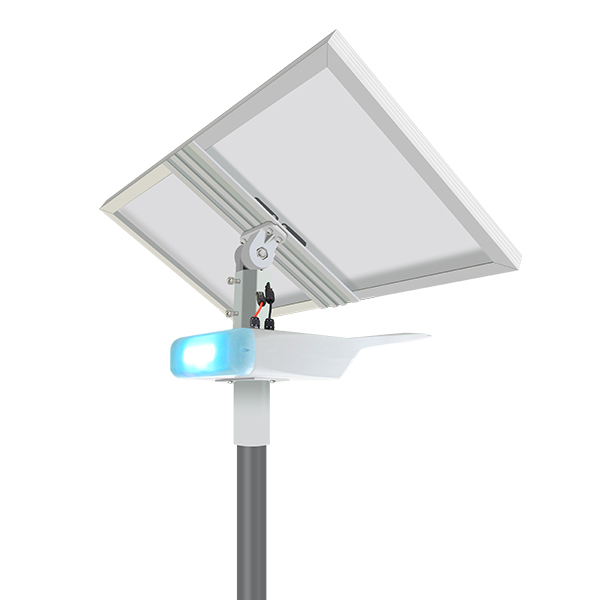

  • Tail light

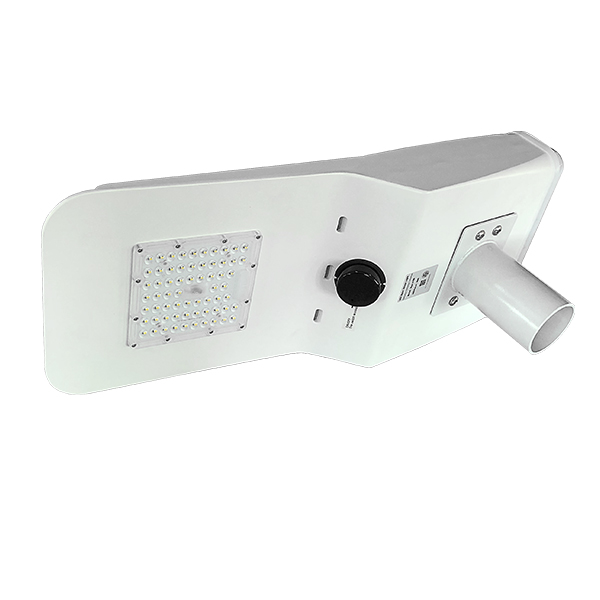

  • VGA Lamp body
