1.5KW 3KW all in one solar power home system

1.5KW 3KW

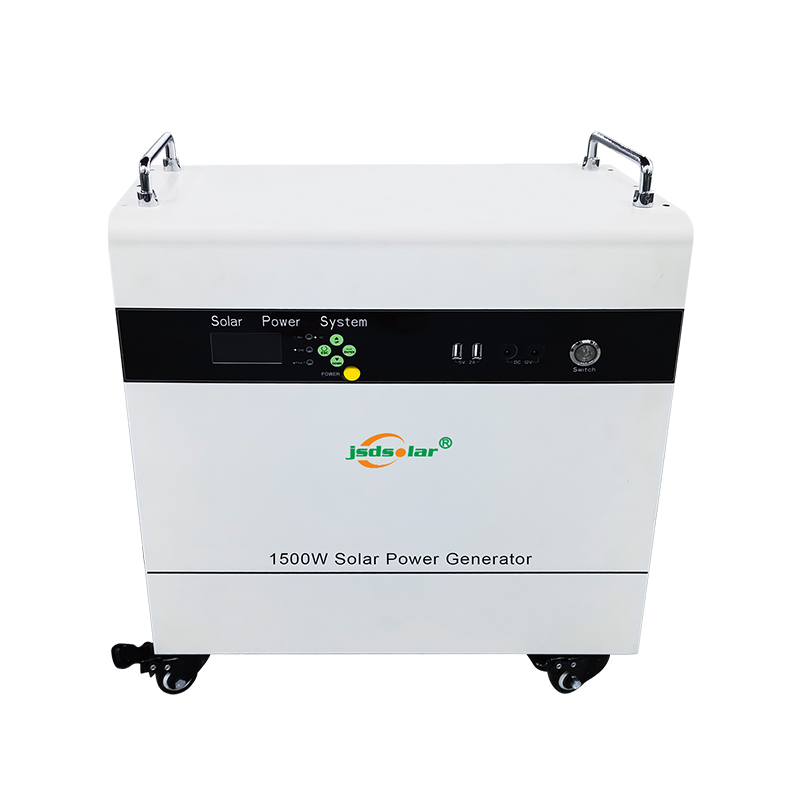

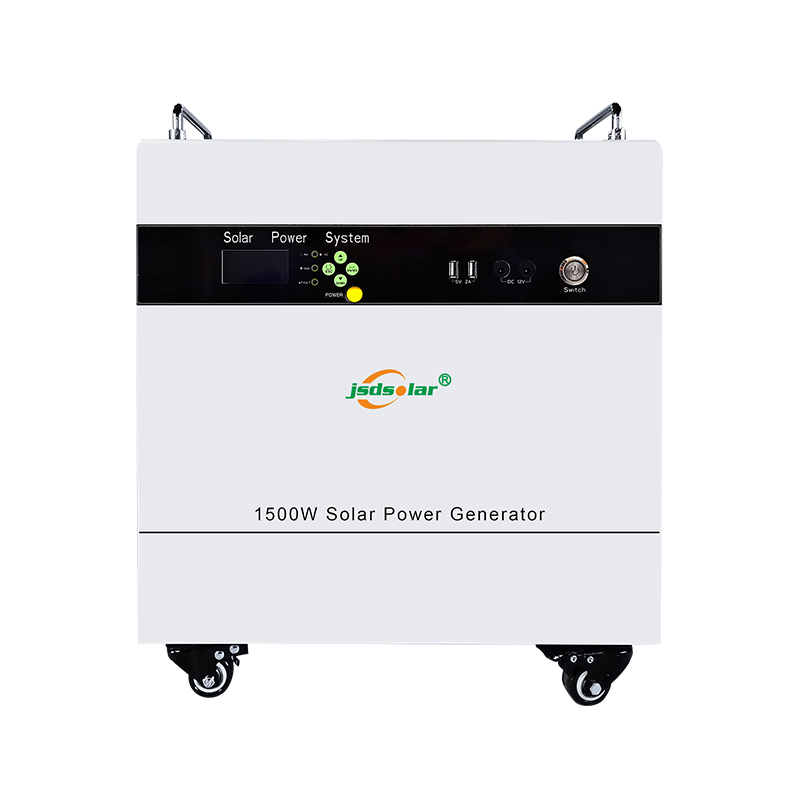

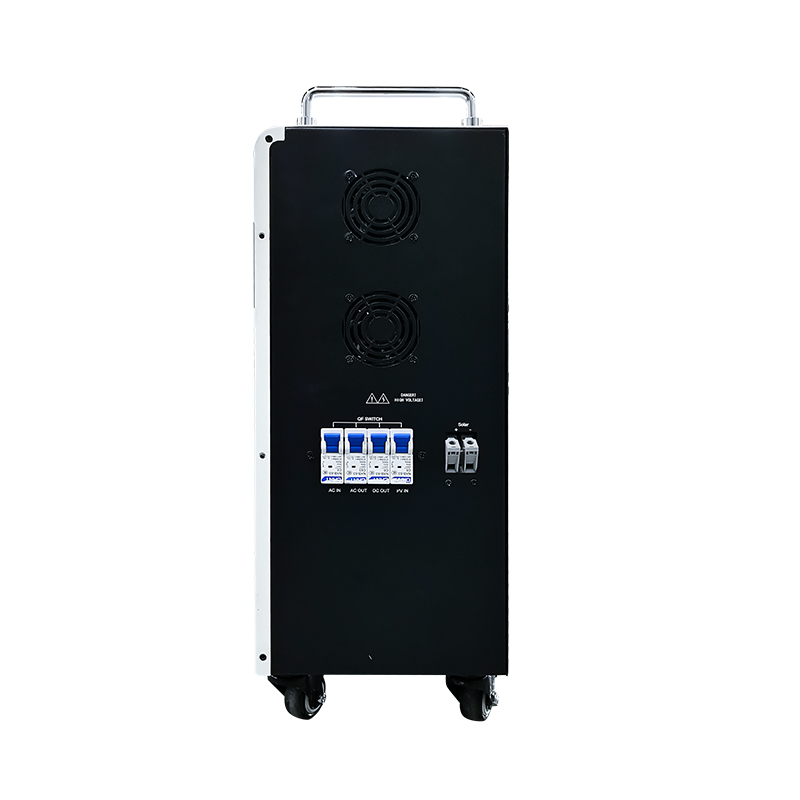

1.5KW 3KW all in one solar system has built-in inverter & MPPT charge controller & Lithium battery, and input and output socket, cooling fans, input and output protection are integrated into a box with handles and four wheels.

Free Consultation

FEATURES

Adopt LiFePo4 battery, high energy storage and over 3000 cycle times

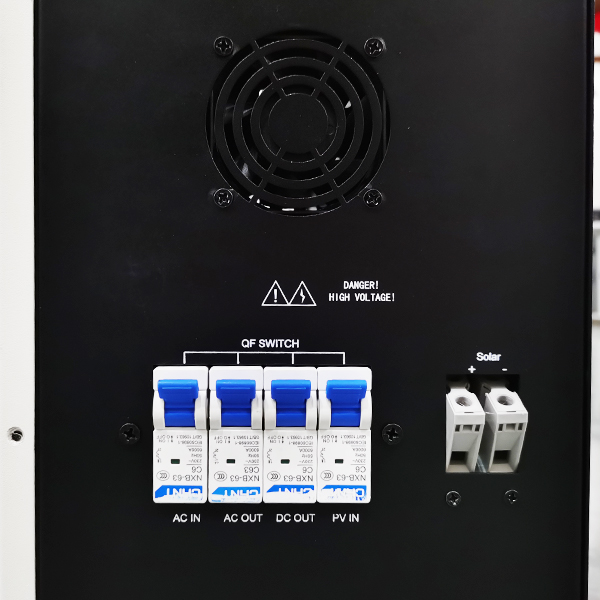

Double protection both BMS and charger
Pure sine Wave inverter, Friendly for electricity applicances
Multiple DC output ports, Support charging different devices Simultaneously
Built-in MPPT solar controller, High effificiency
Up-market metal casing, Better heat dissipation performance

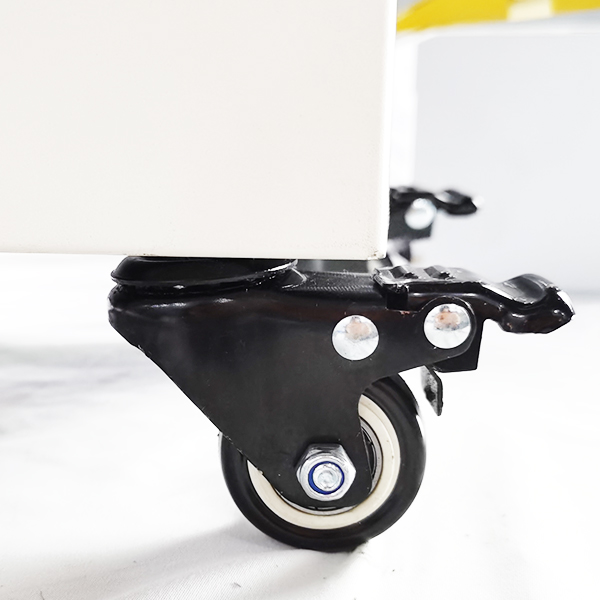

Integrated Solar power station(except solar panel), With handlebars and wheels, Convenience move
Intelligent temperature cooling fan, Working silently

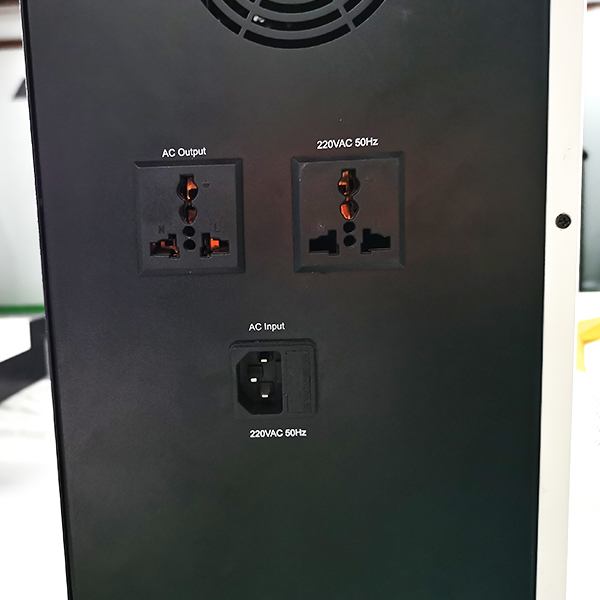

Double AC output socket of 1500w strong power
Integrated inverter/MPPT controller/battery into one

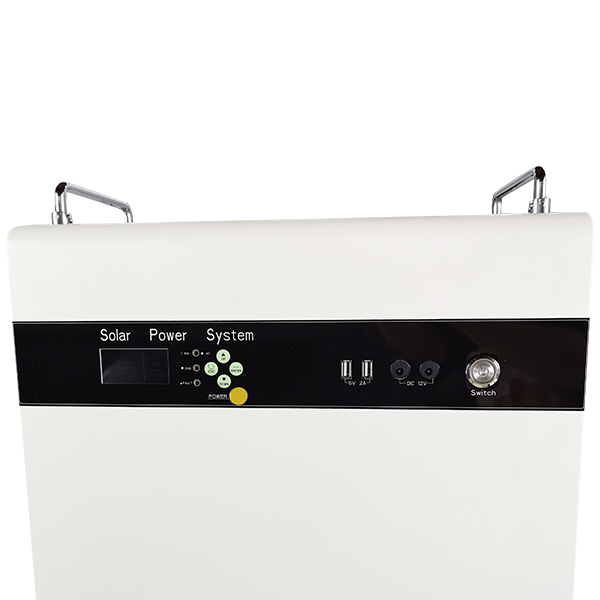

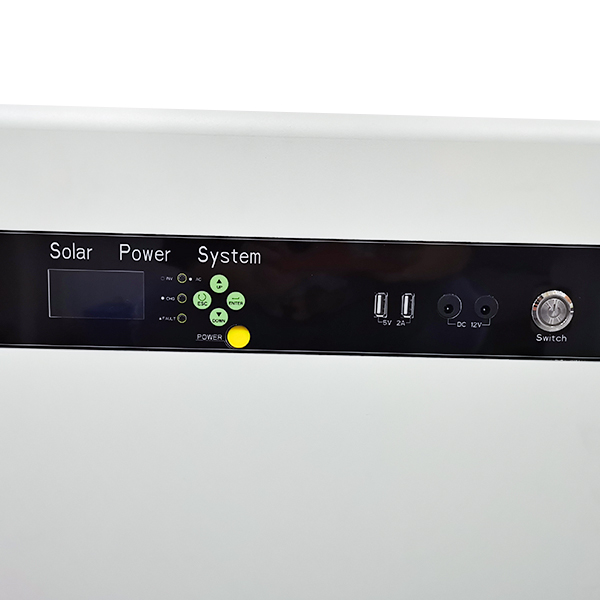

The display screen shows the working status and can diagnose the machine fault

SPECIFICATIONS

Products name	Portable Solar generator kit system
Main Parts	solar converter, mono solar panel, solar mppt controller, lifepo4 battery
Products Model	JHP-1500, JHP-3000
Built-in inverter power	1500W,3000W
Mono Solar Panel	400W , 800W
Built-in Battery	1536Wh, 3072Wh
Input	Input Voltage	145~275VAC(220VAC)
	Main Power	220VAC (50/60Hz)
Output	Output Voltage	220VAC
	Output Frequency	50/60Hz
	Output Waveform	Pure Sine Wave
	DC Output Port	USB outputs 2 , 12VDC outputs2
N.W	28KG
Output Voltage	12V DC, 5V USB DC, 220V AC
Dimension LxWxH(mm)	450x200x540
Acquired certifications	UL,PSE, FCC, CE, UN38.3,MSDS ,ROHS.
