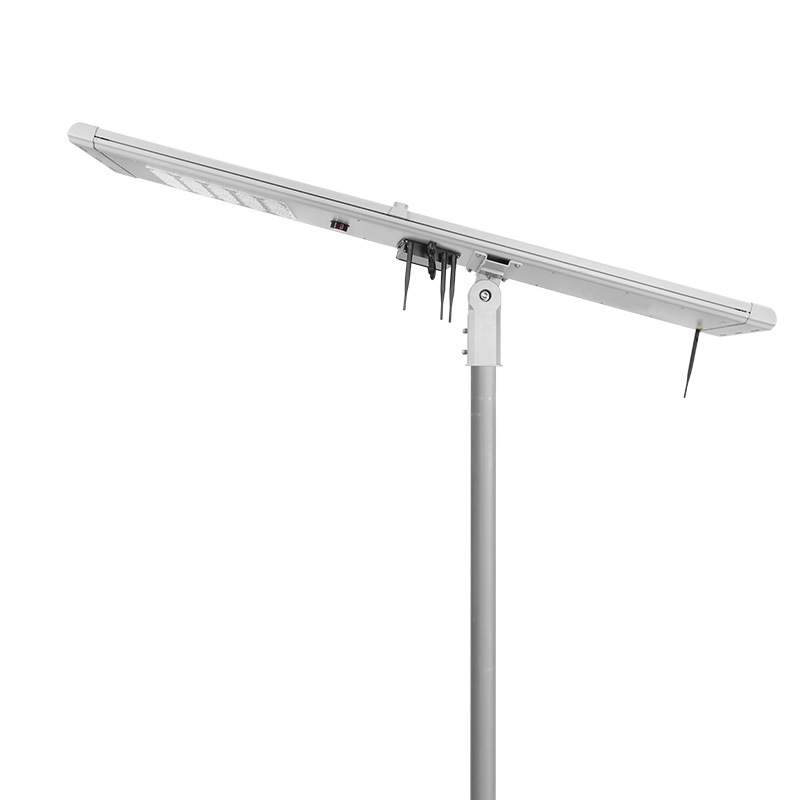

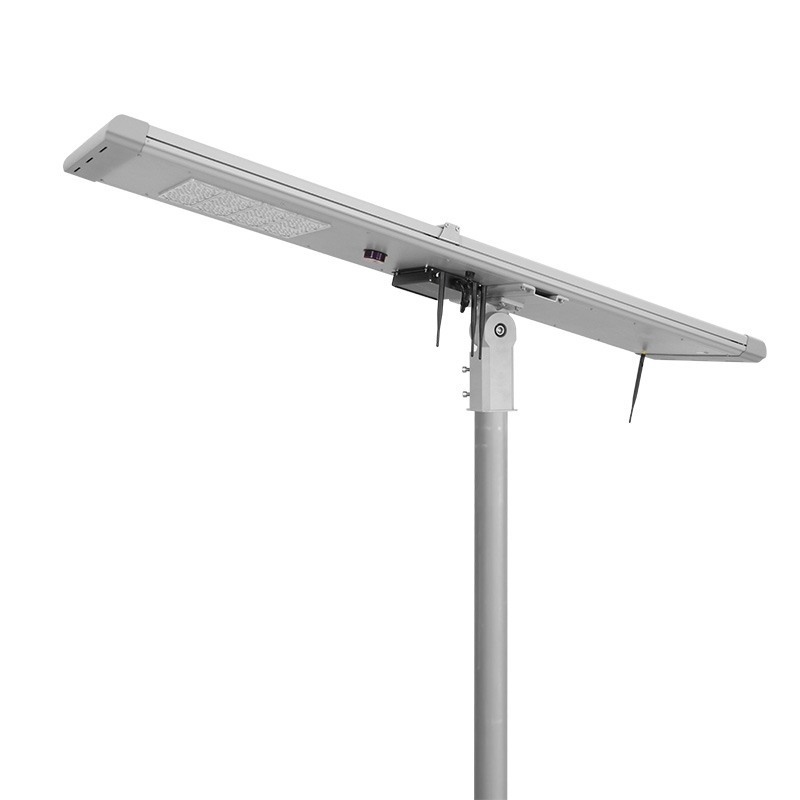

Self-cleaning AL-X series solar street light

AL-X series

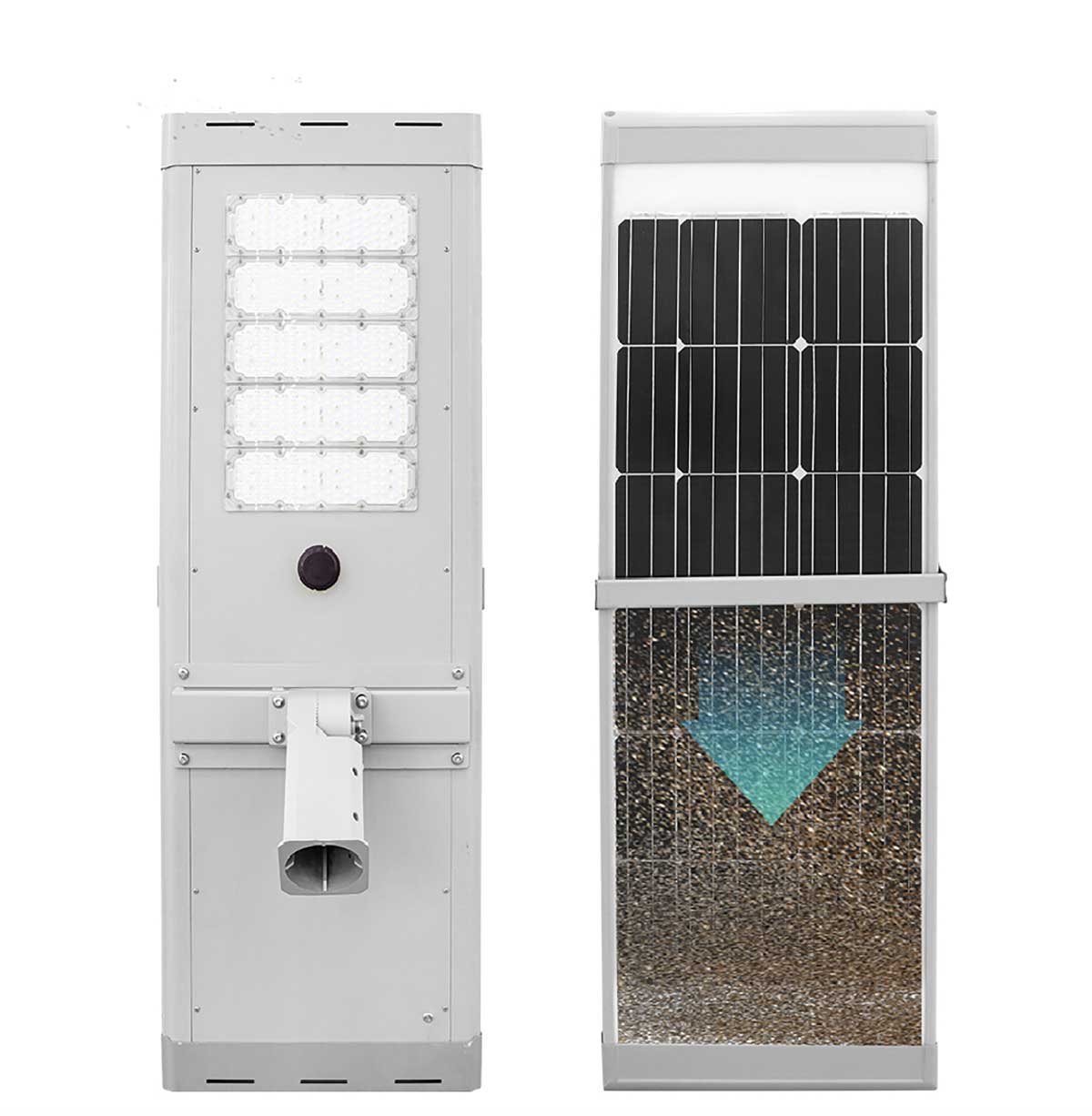

AL-X Series self-cleaning solar street light realizes multi-function integration, AL-X automatically clean solar panel to remove dust and sand, solved long-standing global issue which is to avoid PV energy input with 50% lower efficiency by dust and bird dropping cover, keep PV with maximum charge efficiency always for years.

Luminums flux

160lm/w

Life Cycle

3000cycles

FEATURES

SPECIFICATIONS

Model AL-X6 AL-X8 AL-X10 AL-X12
Mono Solar Panel Power 60W 80W 100W 120W
Efficiency 20%
Life 25years
LED light Power 60W 80W 100W 120W
Color Temp 3000-6500k
LED Chip Philips
Luminums flux 160lm/w
Lumen 9600lm 12800lm 16000lm 19200lm
Life ≥50000hrs
 LiFePO4 Battery Capacity 384Wh 512Wh 768Wh 1024Wh
Life Cycle 3000cycles
Certification CE, EMC, LVD, Rohs, IEC, IP66

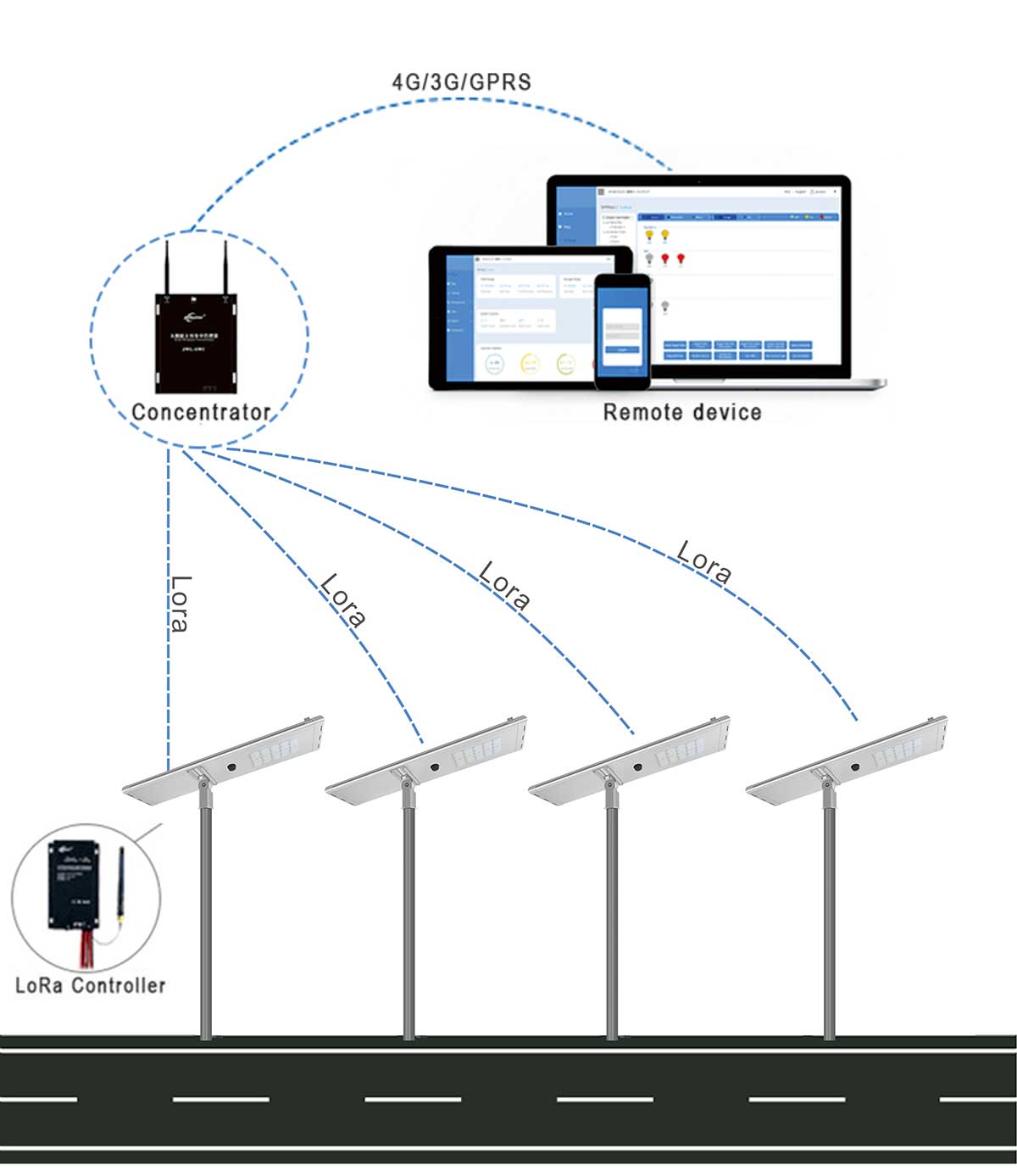

Intelligent  Controller MPPT charge controller with 12m mircrowave sensor
Working Mode Timing+Dimming+Sensor
Working Time 12hours/day, light+time+microwave sensor control
Charging Temp -20-65
Discharging Temp -20-65
Storage Temp 0-45
Height of  Pole  6-7m 7~8m  8-9m 9~10m
Distance of  Pole <25m <25m <25m <30m

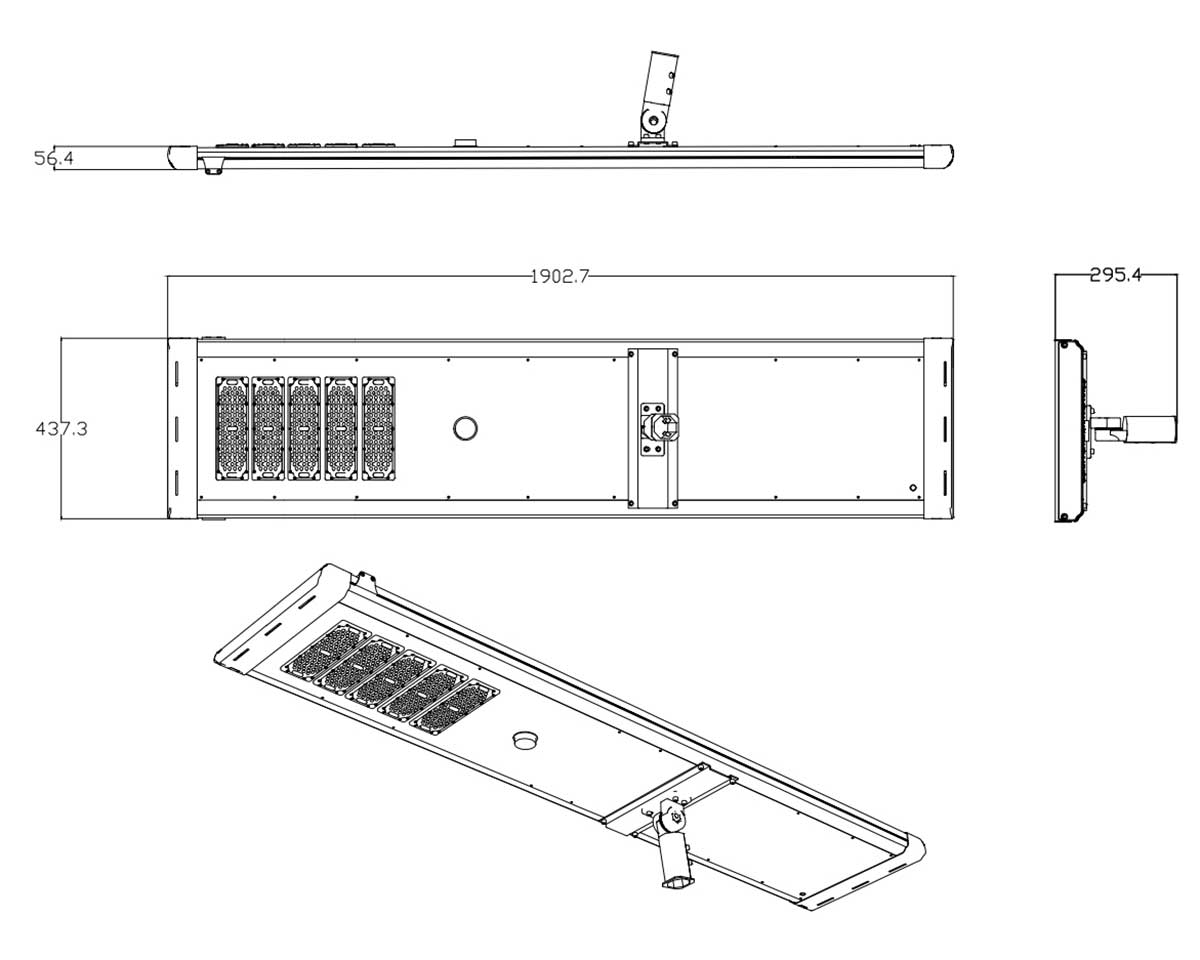

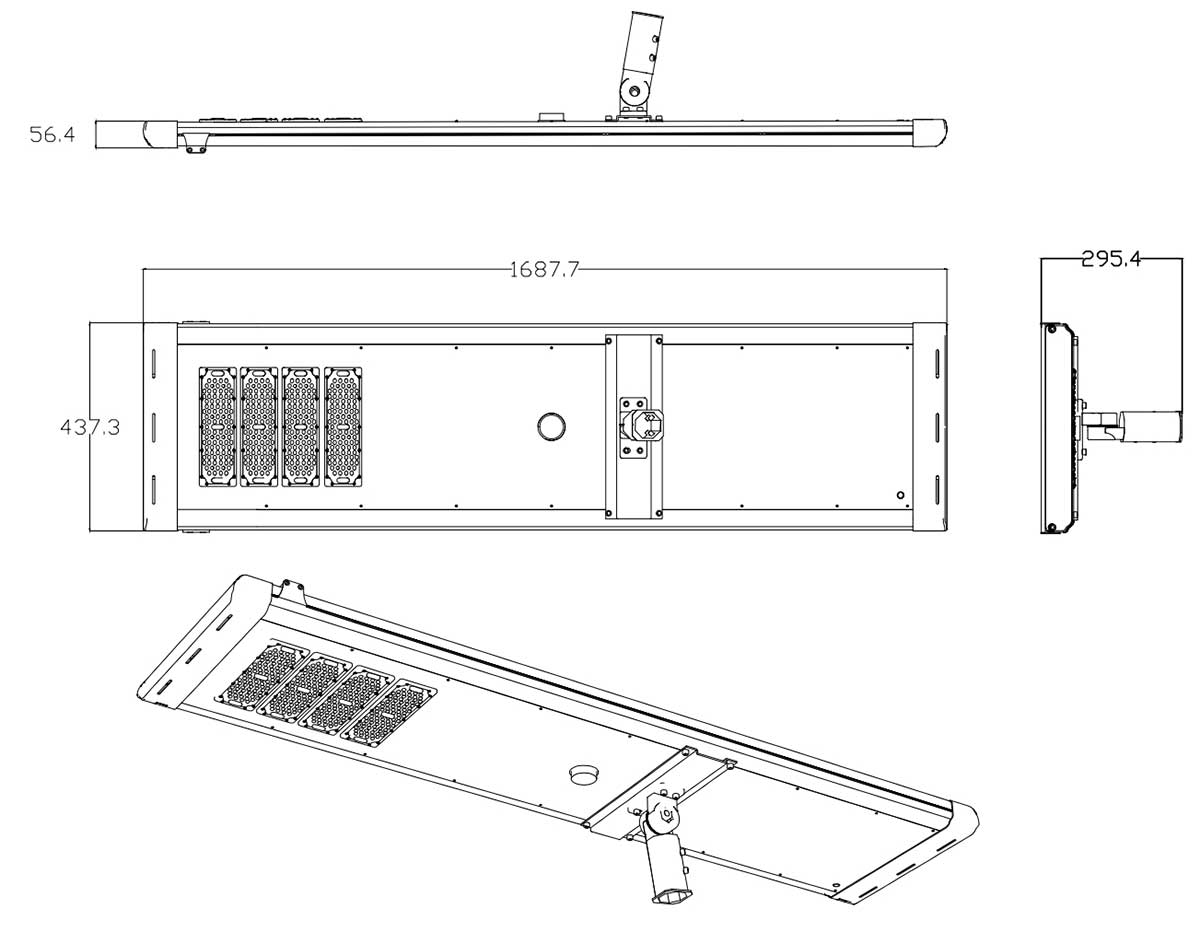

Size 1012*450*56mm 1243*450*56mm 1448*450*56mm 1685*450*56mm
Weight 18KG 24KG 32KG 39KG
Pole Diameter 60mm 60mm 60mm/70~80mm 70~80mm

DESCRIPTION

DETAILS

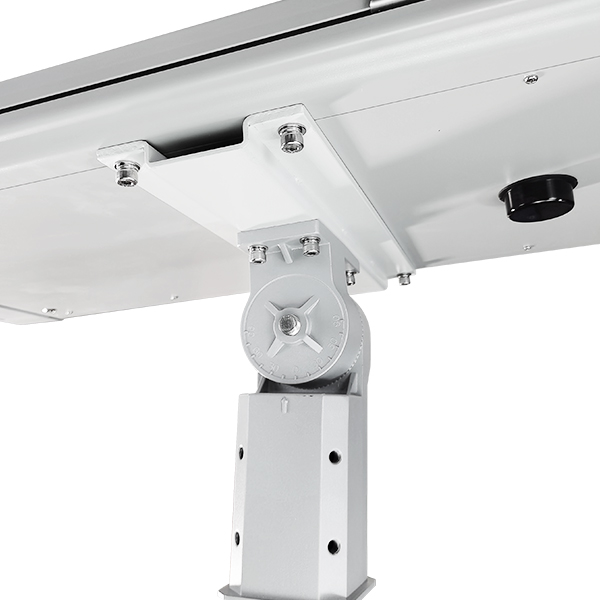

  • Bracket

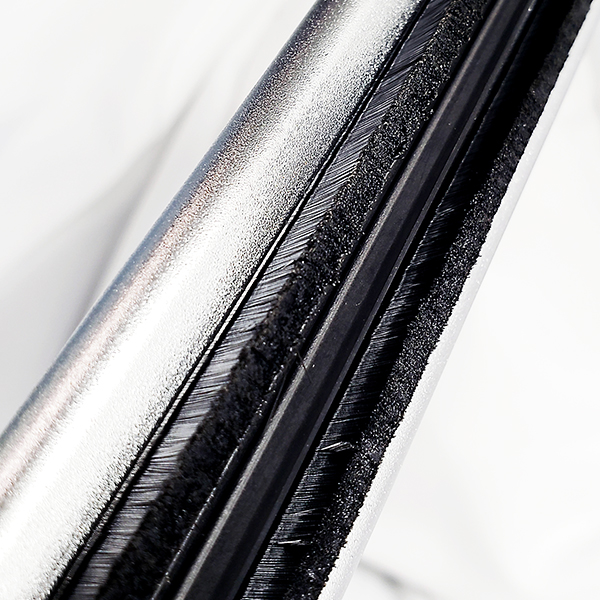

  • Cleaning brush

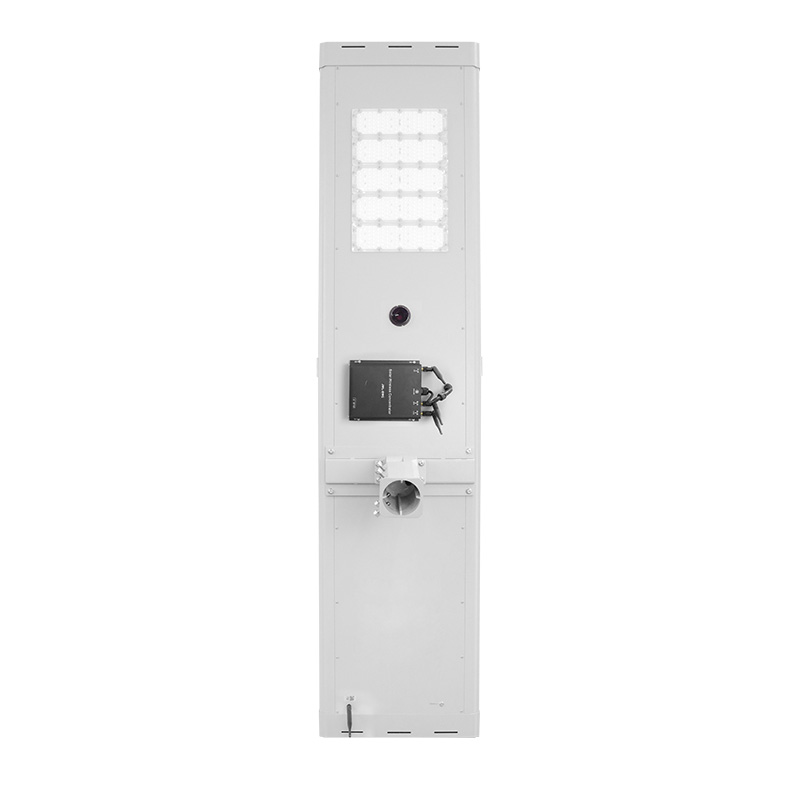

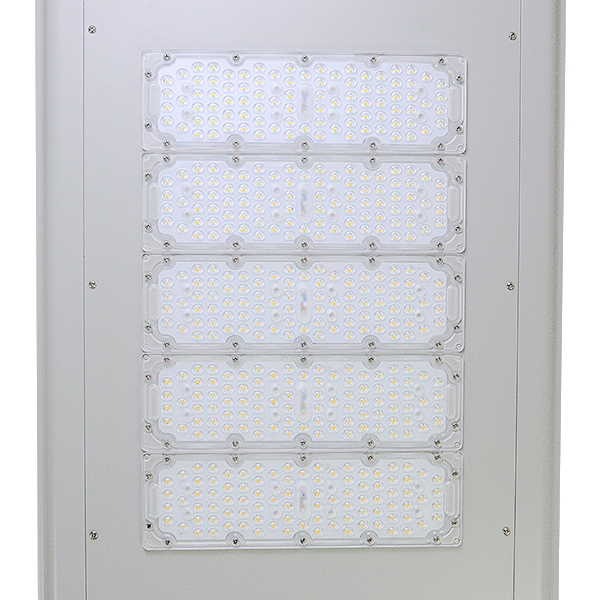

  • LED Light

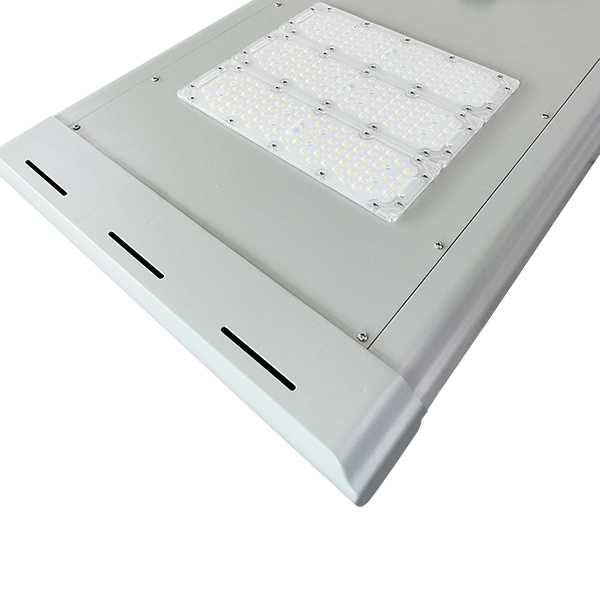

  • Round Coner
