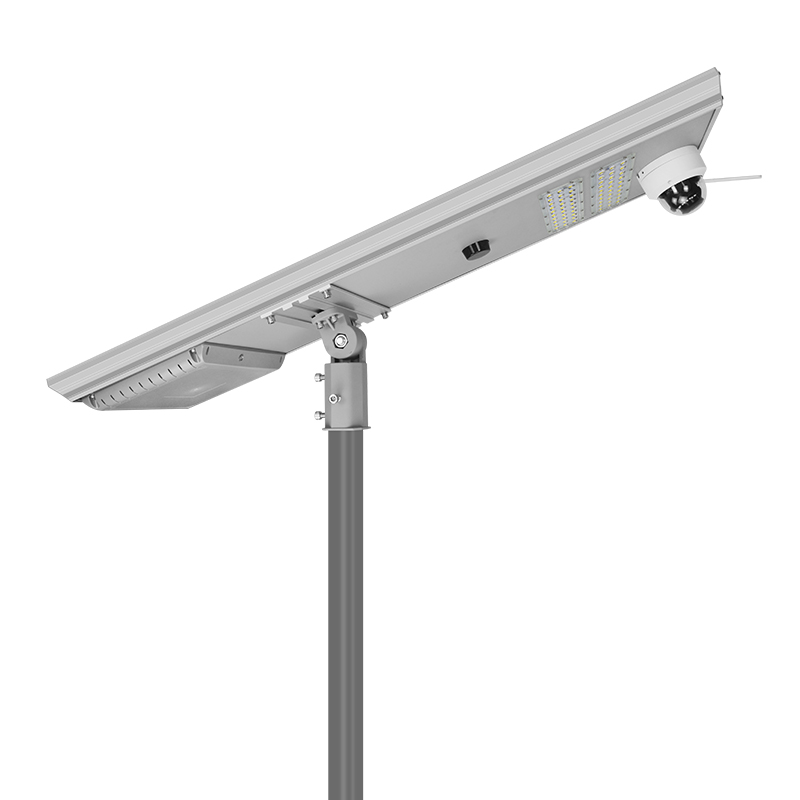

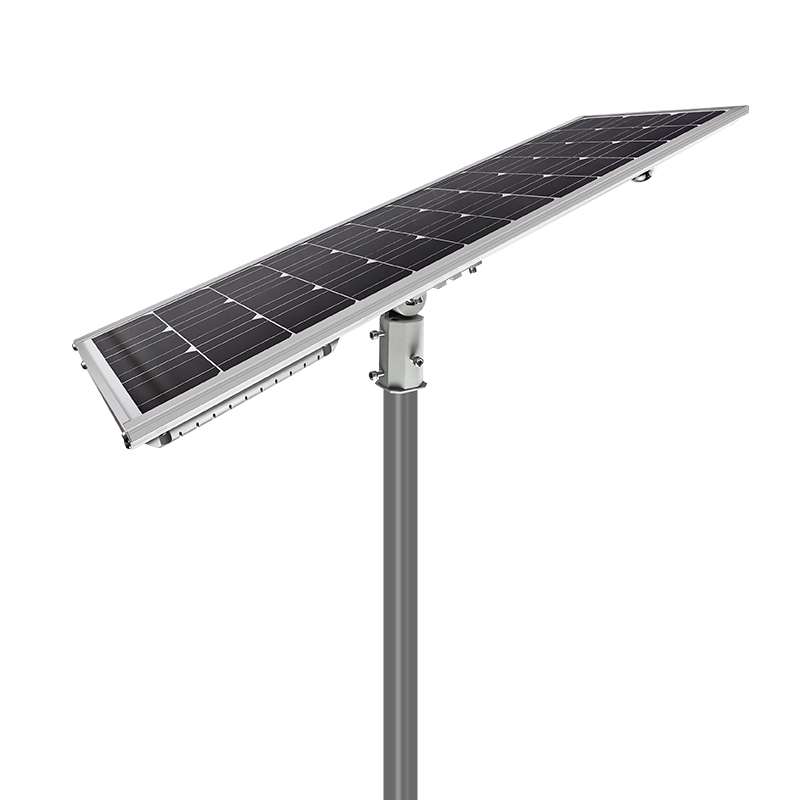

Intelligent Solar Street Light With CCTV Camera

BD-X8C

BD-XC solar street light is with lighting and CCTV camera integrated design to monitor surrounding road situation, protect estate and anti-thief.

Luminums flux

160lm/w

Life Cycle

3000times

FEATURES

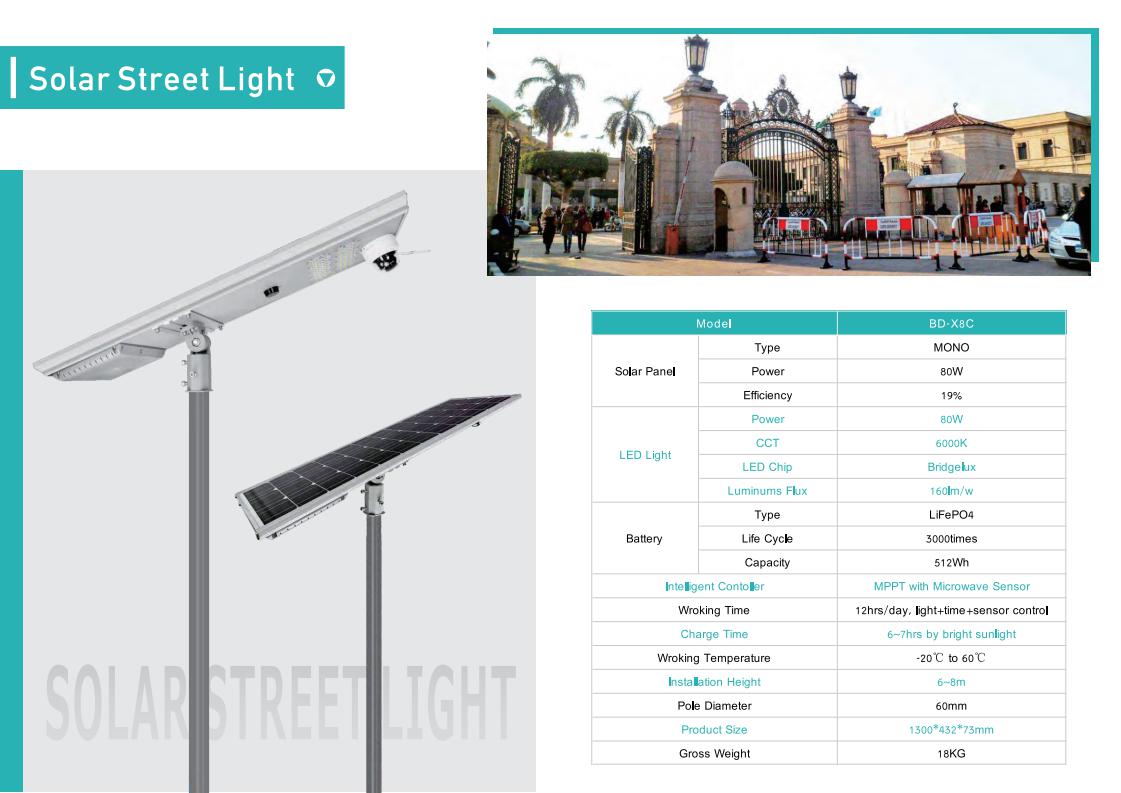

SPECIFICATIONS

Model BD-X8C
Mono Solar Panel Power 80W
Efficiency >19%
Life 25years

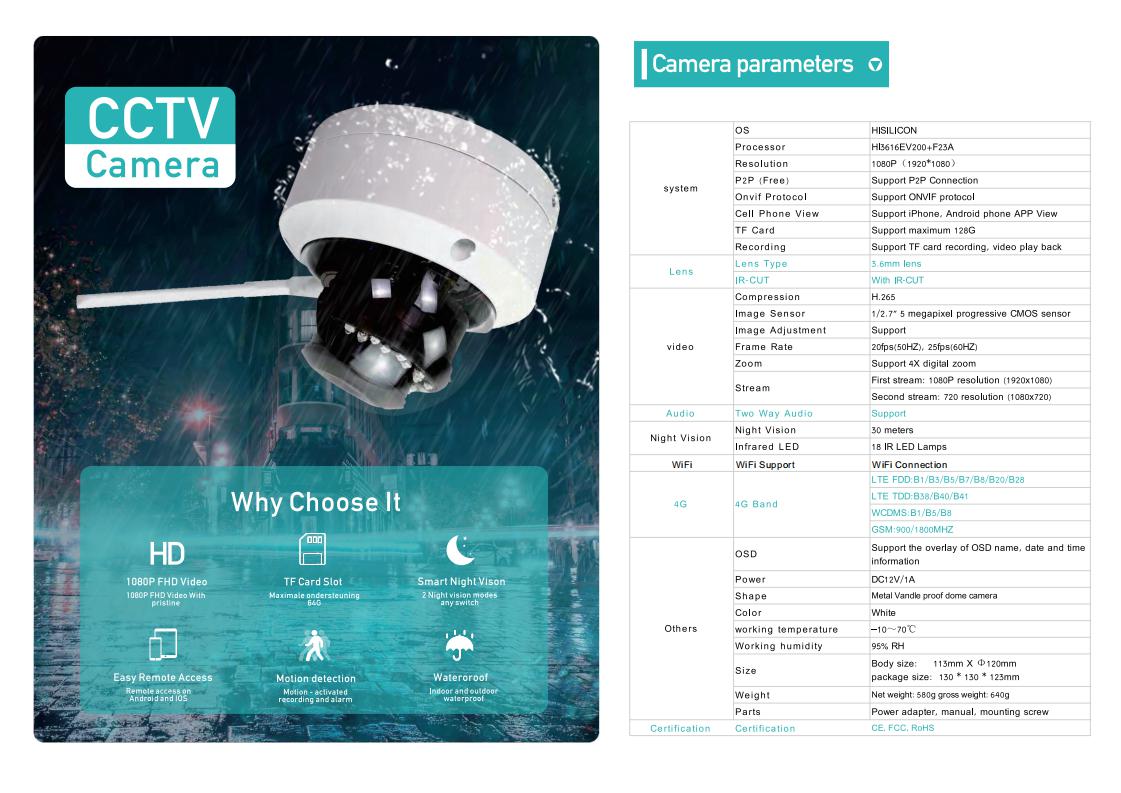

Camera 1080P

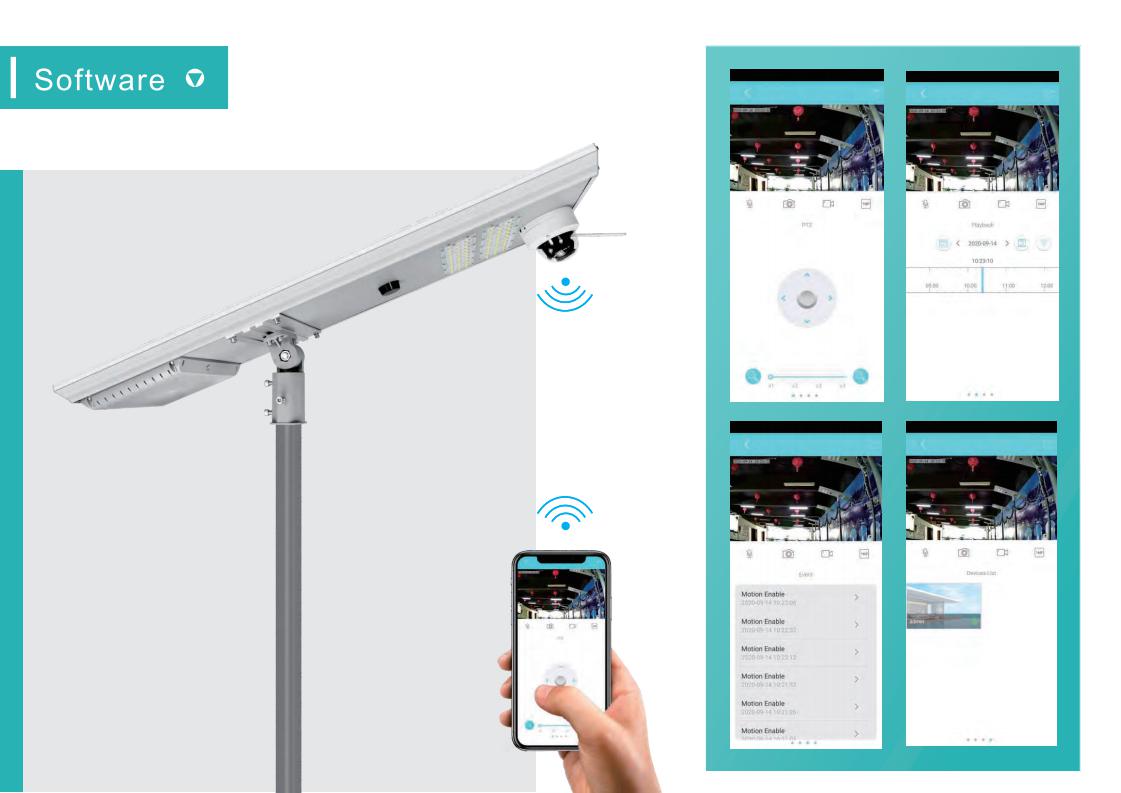

Cel l Phone View Support iPhone, Android phone APP View
Connection Wifi or 4G
TF Card Support maximum 128G
Lens Type 3.6mm lens With IR-CUT
LED light Power 80w
Color Temp 3000-6500k
LED Chip Bridgelux
Luminums flux 160lm/w
Lumen 8000-12800lm
Life ≥50000hrs
CATL LiFePO4 Battery Capacity 512Wh
Life Cycle 3000times
Certification CE, EMC, LVD, FCC, Rohs, IEC, IP66
Intelligent  Controller 30A with 12m mircrowave sensor
Working Time 12hours/day, light+time+microwave sensor control
Charging Temp -15-65
Discharging Temp -15-65
Storage Temp 0-45
Height of  Pole 6-8m
Distance of  Pole <30m
Size 1300*432*73mm
Weight 18kg
Pole Diameter 50-60mm

DESCRIPTION

DETAILS

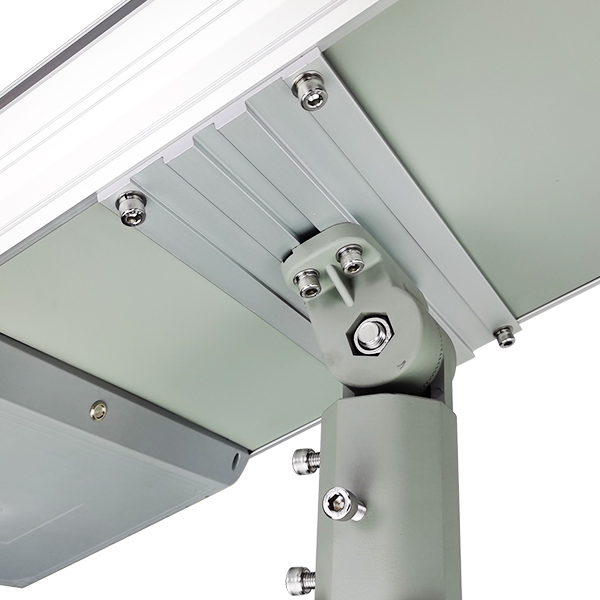

  • Adjustable bracket

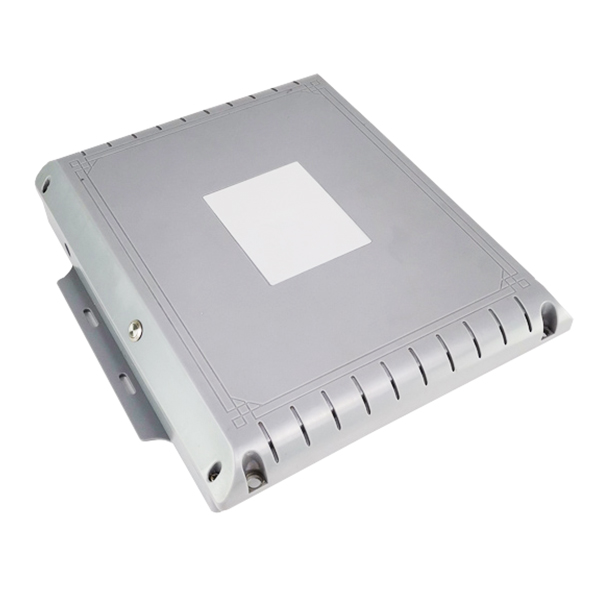

  • Battery Box

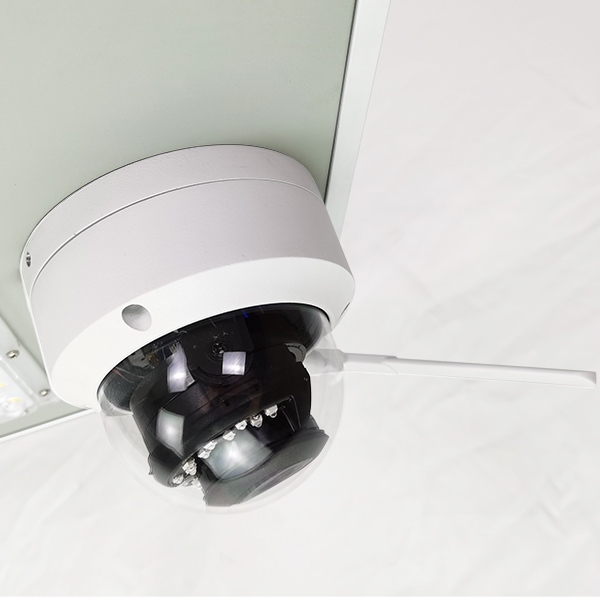

  • CCTV camera

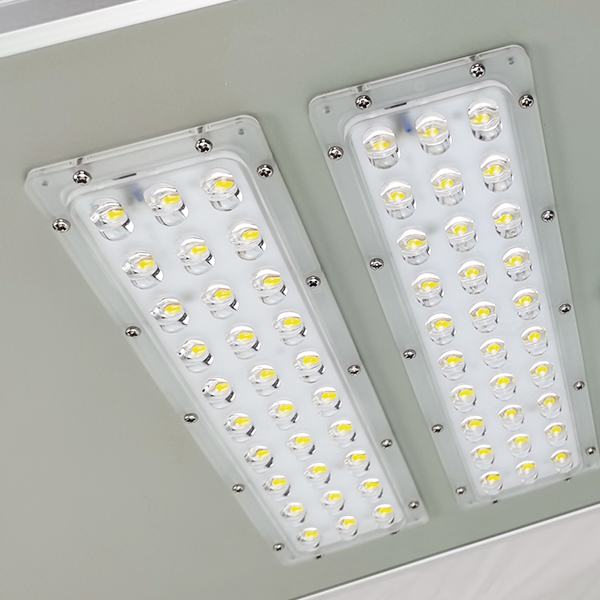

  • LED lights

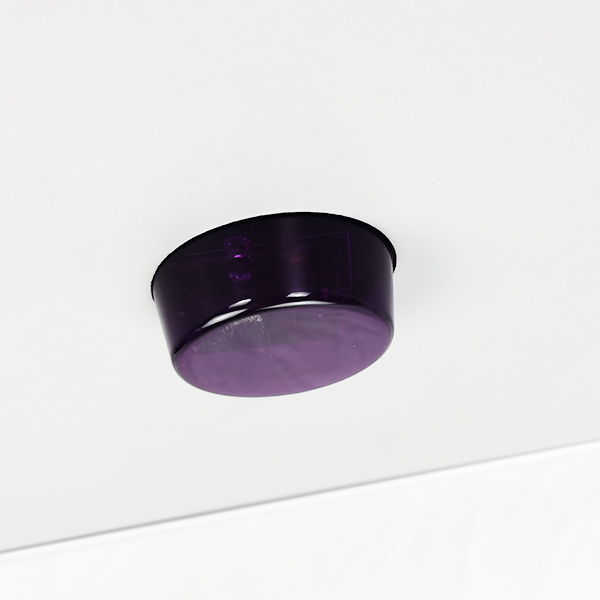

  • Microwave sensor
