Stackable Home Energy Storage System –Built-in inverter & controller with LiFePO4 Battery 10KWh Capa

Inverter, MPPT controller, Battery Module

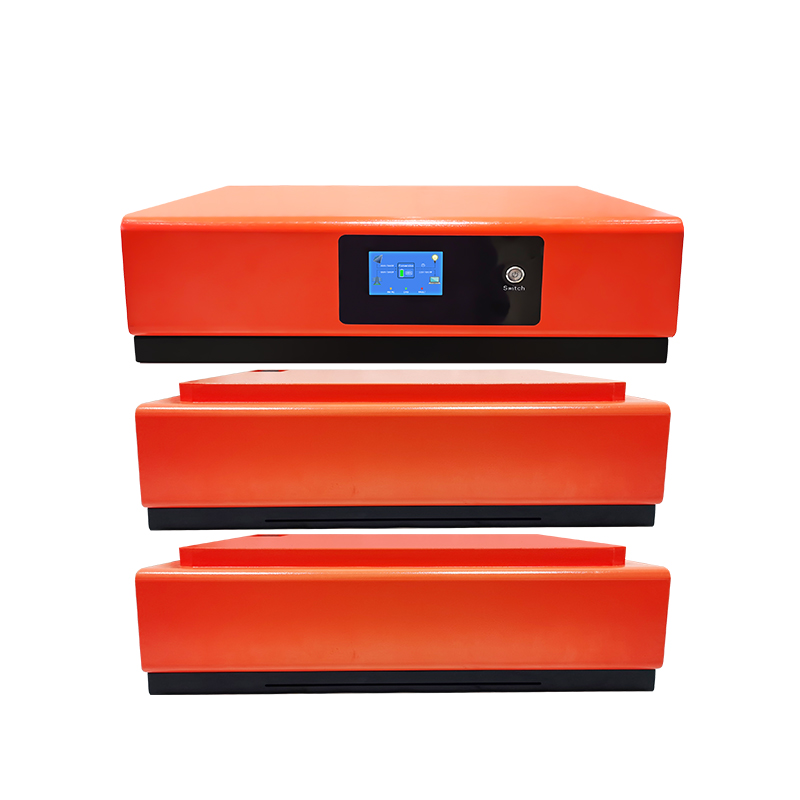

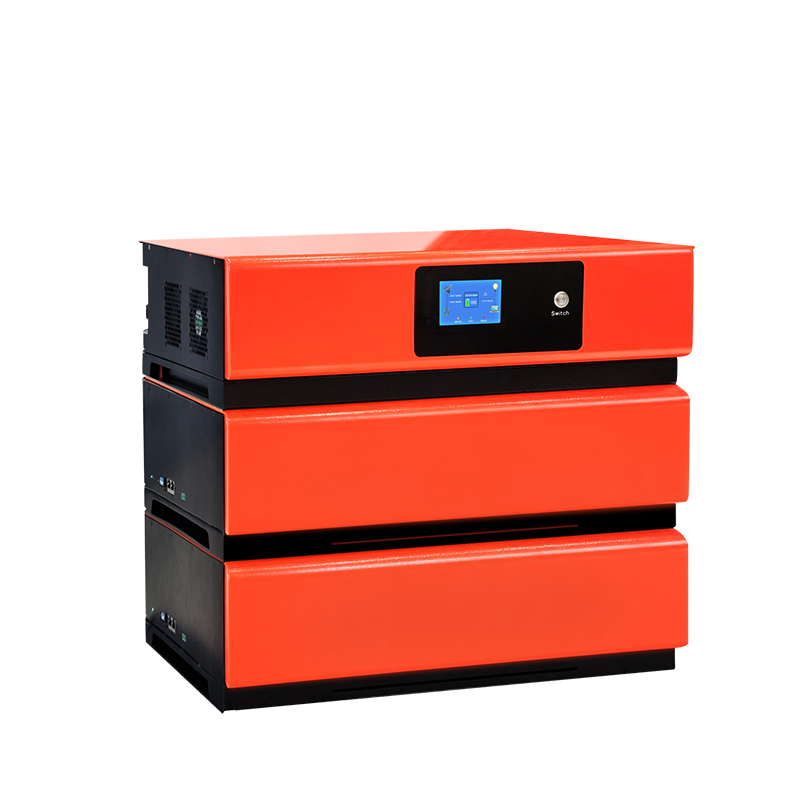

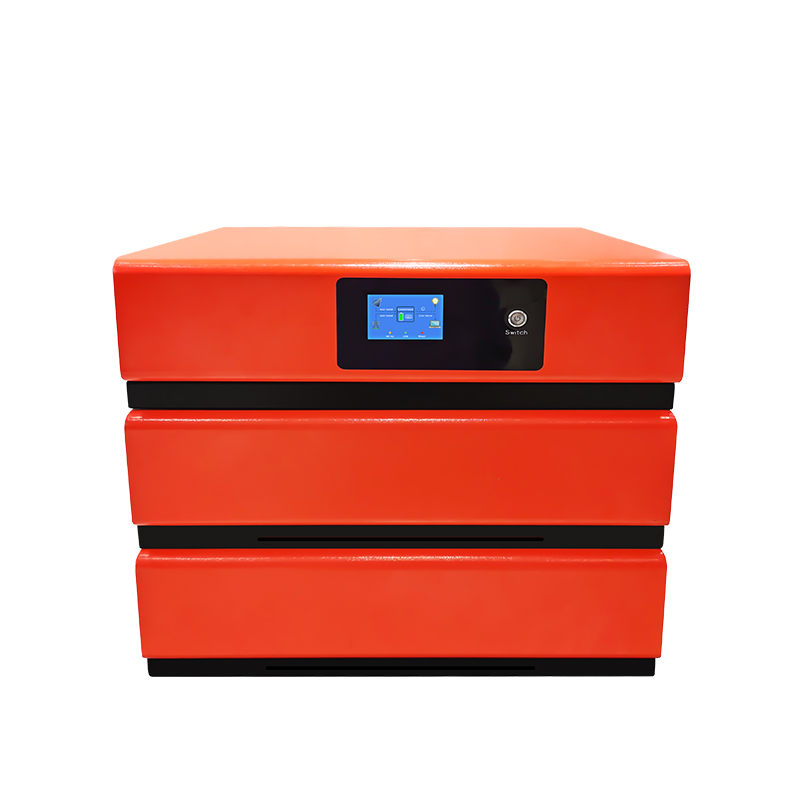

Stackable Home Energy Storage System is a PLUG & PLAY system with a flexible modular design with no extra cables, which is safe, long life span and has good performance. They apply to all home storage systems. Each set of systems contains 1 set 5KV inverter up to 5 battery modules in parallel connection and achieves usable capacity between 5.12 to 25.6 kWh.

Built-in Inverter

5KVA

Battery Module

10KWh (51.2V100Ah*2)

FEATURES

SPECIFICATIONS

Model  Stackable Home Energy Storage System
Main Parts Inverter, MPPT controller, Battery Module
Built-in Inverter  5KVA
Built-in Mppt Controller 80A
Battery Module 10KWh (51.2V100Ah*2)
Input Solar Panel 120VDC-450VDC
Utility Power  90VAC-280VAC
Output Voltage 230VAC
Frequency 50/60Hz
Waveform Pure Sine Wave

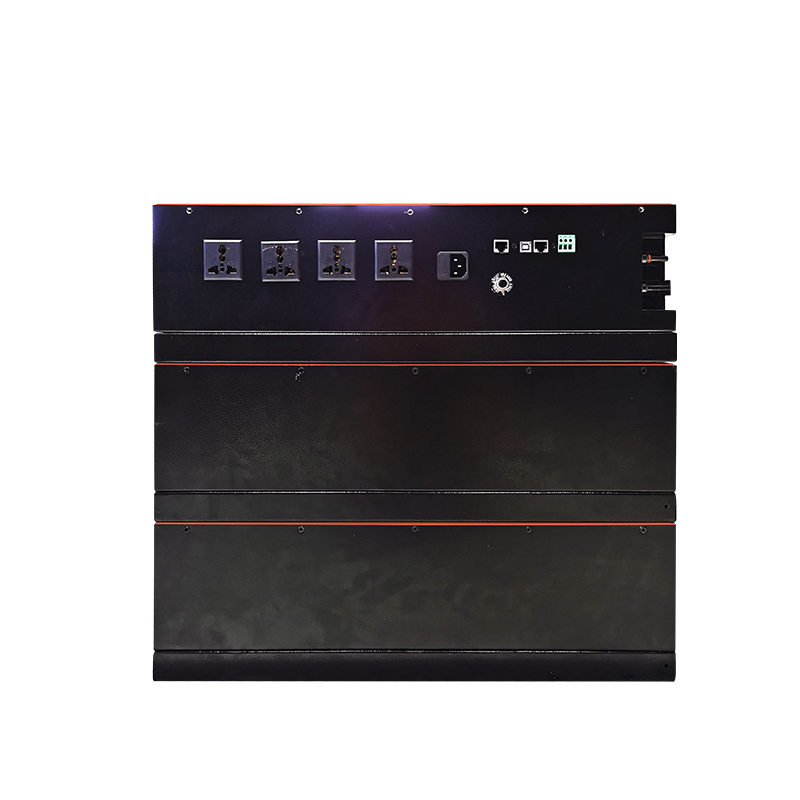

AC Output port 4 Ports
Cycel Life 6000 times of cycle life
Communication Interface CAN / RS485
Dimension L*W*H (mm) 550*390*500mm
Net Weight 130Kg
Application Off-grid / On-grid ( Self consumption / On-grid + Backup)
Certificates CE,RoHS,UN38.3,MSDS,ISO

DESCRIPTION

The Jinsdon Advantage
