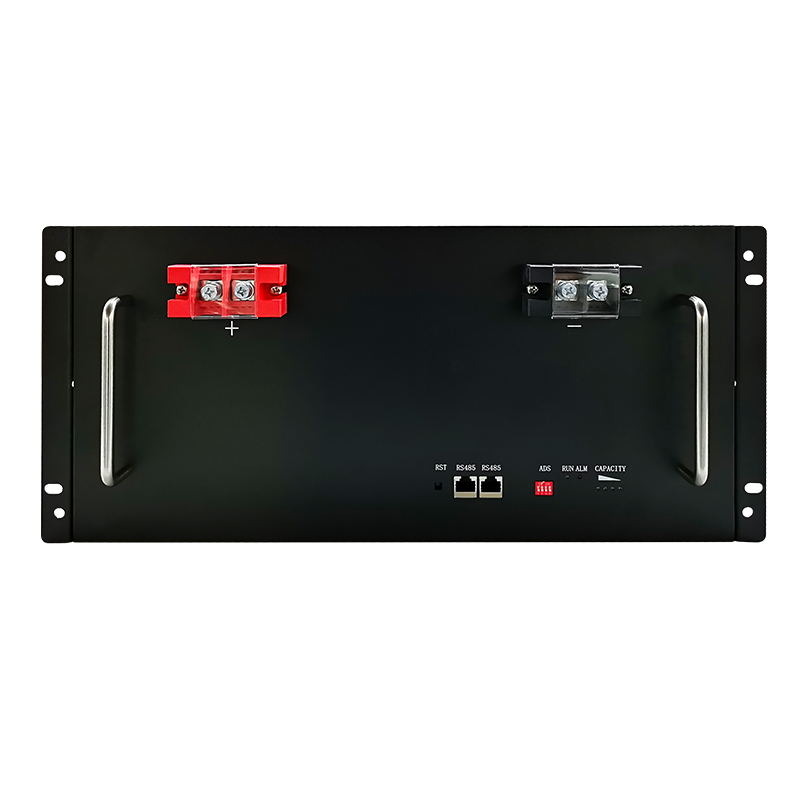

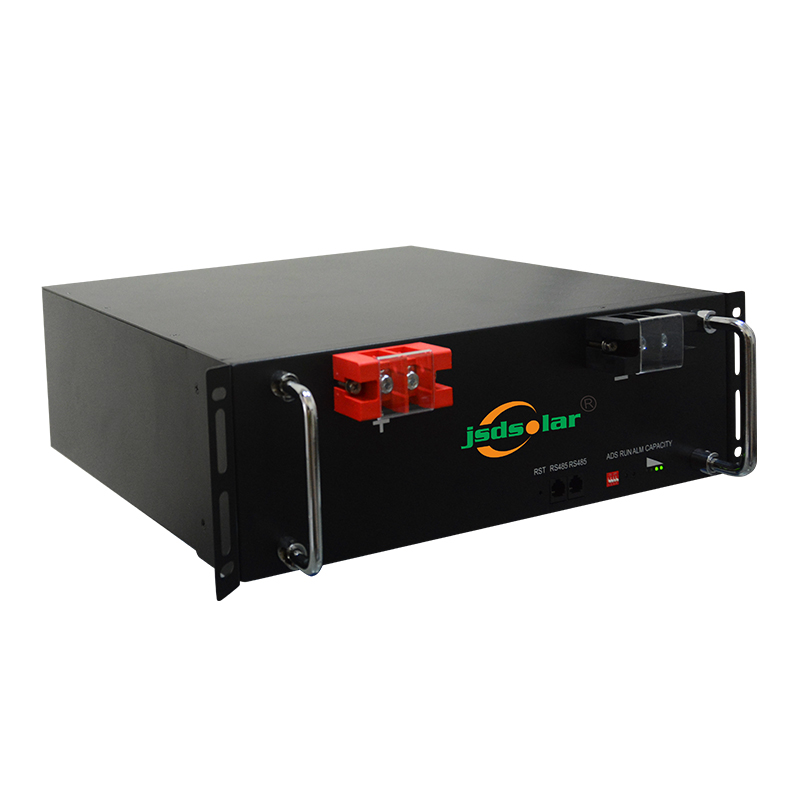

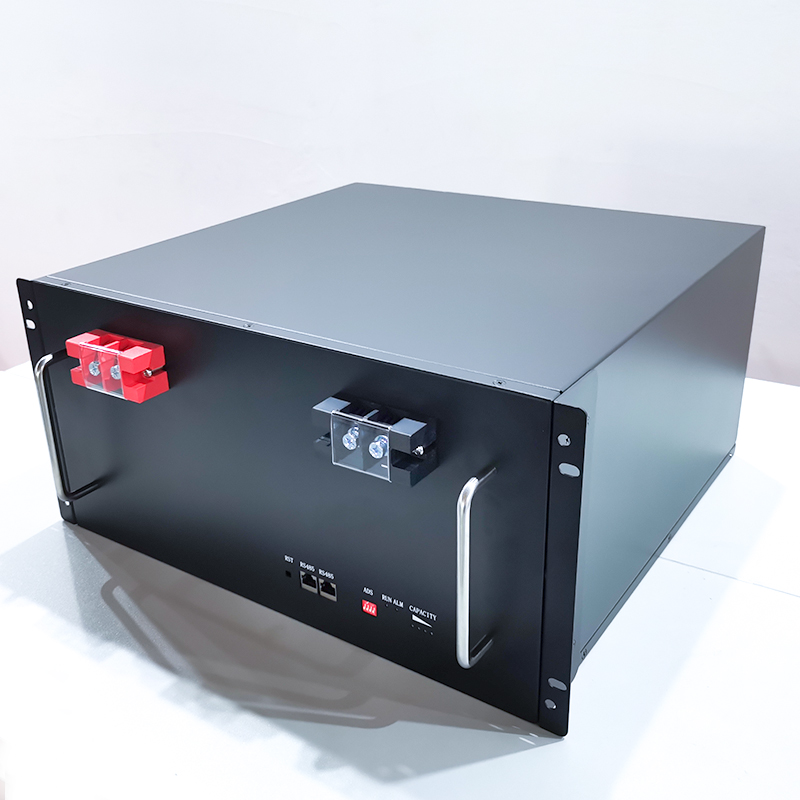

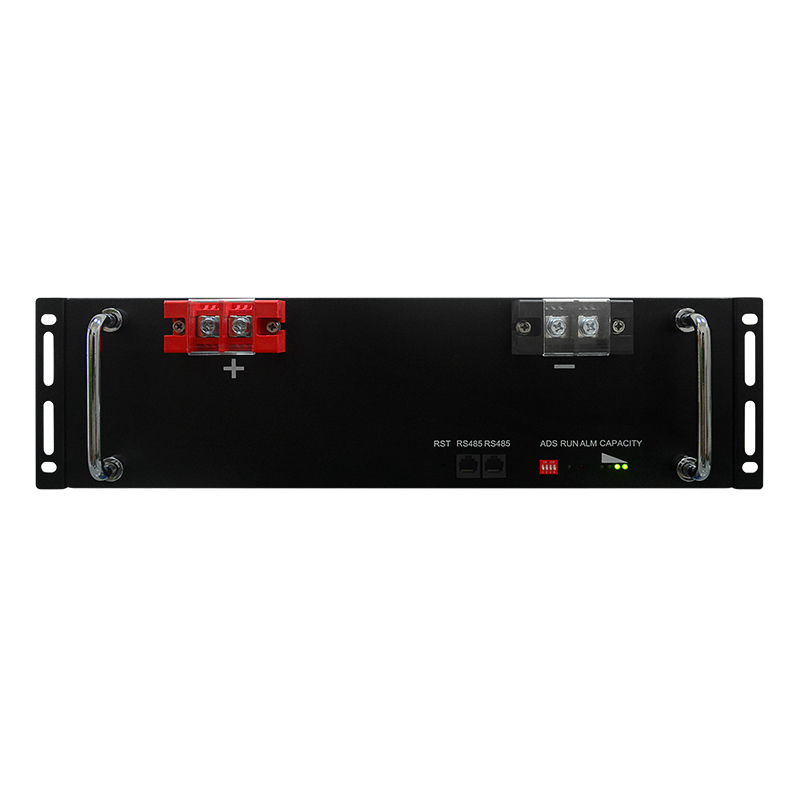

3U&5U Cabinet LiFePO4 battery

Long cycle life 4K Wh, 3U4880 cabinet, LiFePO4 battery patented design, compatible with most available hybrid/off-grid inverters in the world, supporting multiple parallel connections.

Total Energy

4KWH,5KWH

Cycle Life

>6000cycle

FEATURES

SPECIFICATIONS

Model 3U4880 5U48100
Total Energy 4KWh 5KWh
Battery Type LiFePO4
Normal Voltage 51.2V
Normal Capacity 80Ah 100Ah
Max.Charge/Discharge Current 80A 100A
Cycle Life >6000cycle
Communication Interface RS232/RS485/CAN
Dimension 480*465*132mm 480*470*220mm
N.W. 38kg 50kg
IP Grade IP21&IP65
Ctn Size 570*570*220mm 570*570*310mm
Inverter Match all hybrid and off grid inverter brands in the world
Installation Built-in Cabinet / On the floor
Warranty 5years
Pack Impedance(without BMS) <20mΩ
Upper charge voltage 57.6±0.1V
Lower Discharge voltage 43.2±0.1V
Operating Temperature charge:0-55℃
discharge:-15-55℃
Operating Humidity 5%-95%RH
Storage Temperature -20-55℃(Long-term storage at high temperatures (≥35℃)is not recommended.)

DESCRIPTION
