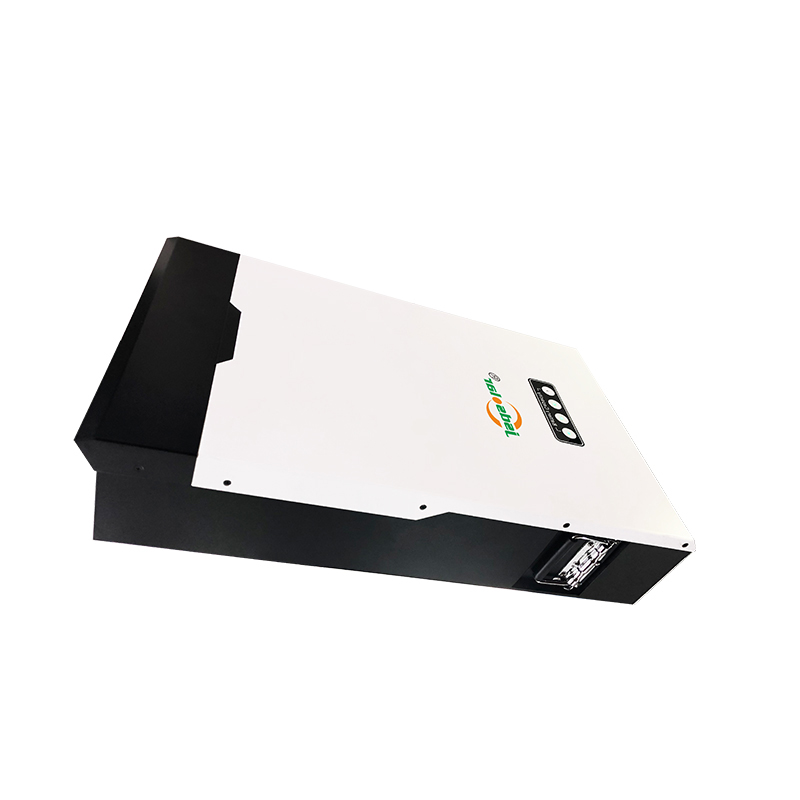

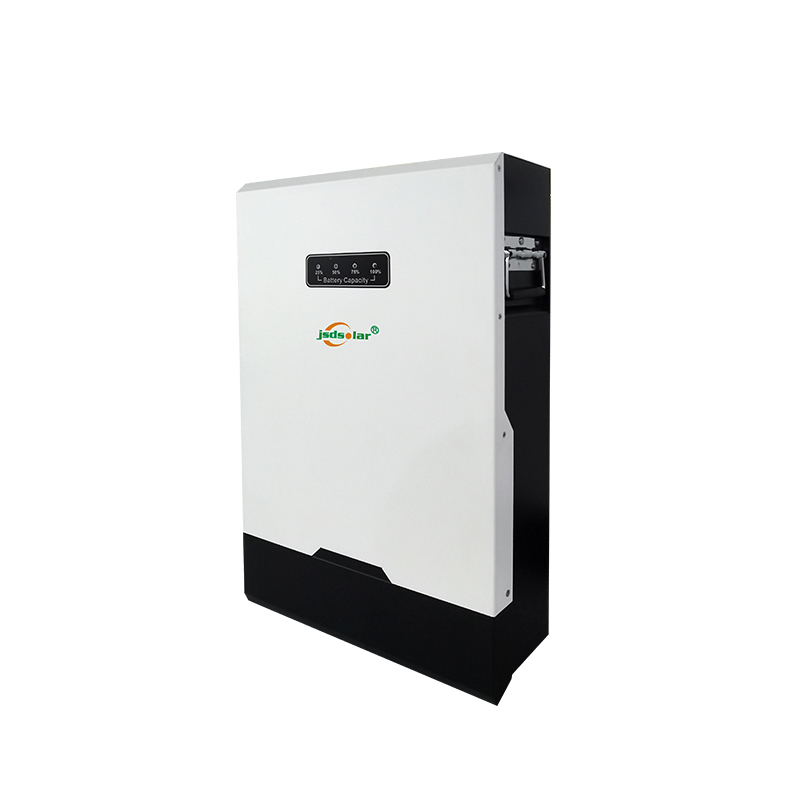

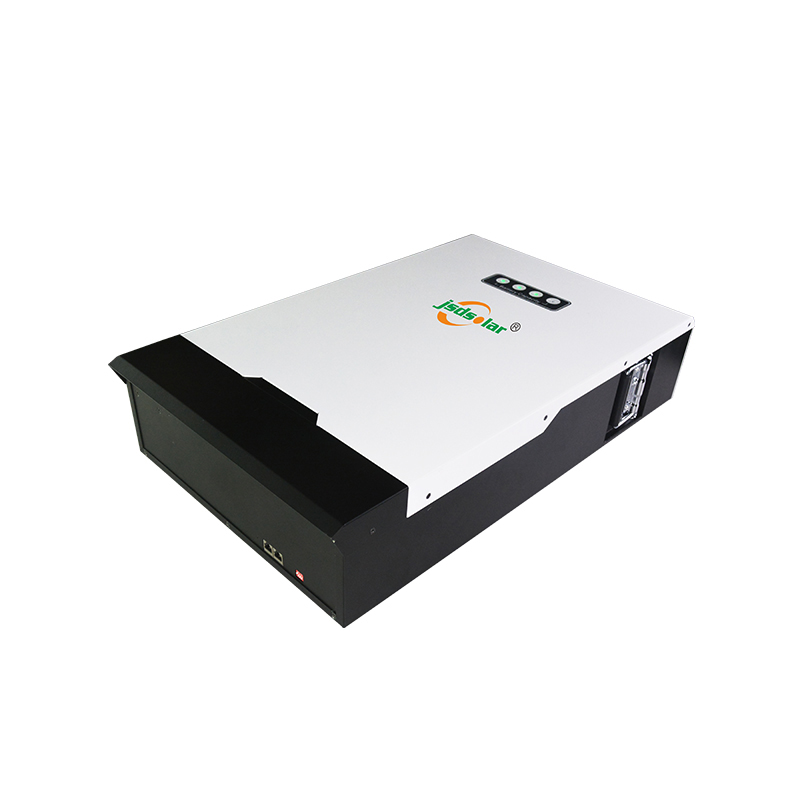

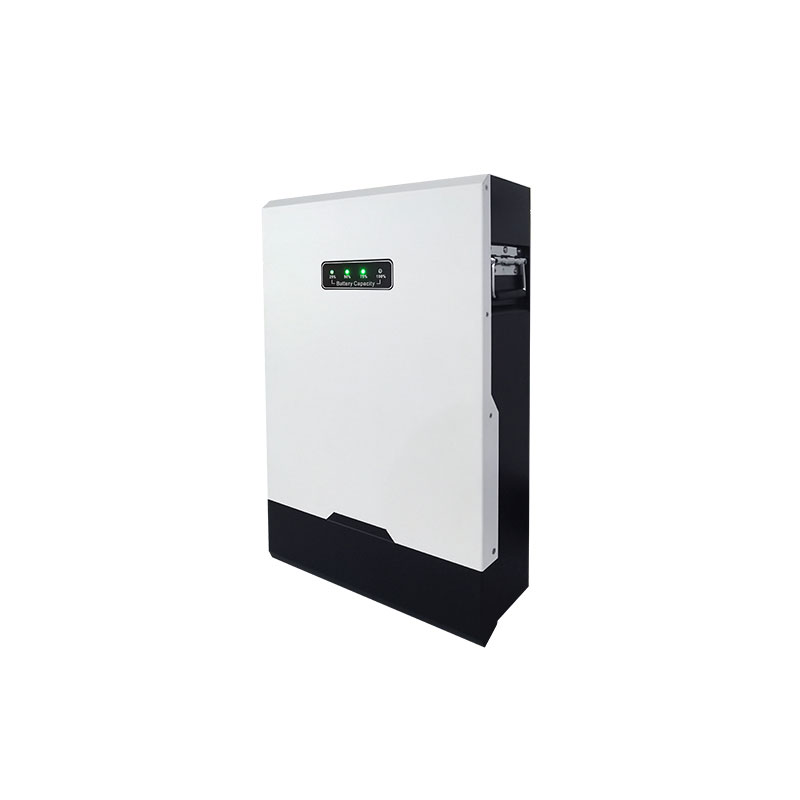

Wall-mounting 51.2V LiFePO4 Battery

4KWH to 6KWH

Wall-mounting battery is designed to make install conveniently and save the space, and good performance in harsh environment, effective customize technical solution can be provided by trustworthy innovative lihtium battery manufacturer.

Normal Voltage

51.2V

Cycel Life

>6000 cycle

FEATURES

SPECIFICATIONS

Model BG4880 BG48100 BG48120
Speicification Total Energy
4KWh 5KWh 6KWh
Battery type LiFePO4
Normal Voltage 51.2V
Normal Capacity 80Ah 100Ah 120Ah
Max.Charge/Discharge Current 100A 100A 100A
Cycel Life >6000 cycle
Communication Interface CAN/RS232/RS485
App Remote Control(optional) 4G,WiFi
Dimension 635*400*155mm 795*420*165mm 795*420*165mm
Weight 45kg 55kg 65kg
IP Grade(optional) IP21
Inverter Match all hybrid and off grid inverter brands in the world
Installation Wall mounted
Warranty 3 years
Supply Ability 5000 pieces per month
Certificates CE,RoHS,UN38.3,MSDS,ISO

DESCRIPTION
